Baumer EIL580P-TT15.5FF.01024.B

In stock!!!

EIL580P-TT15.5FF.01024.B VIDEO

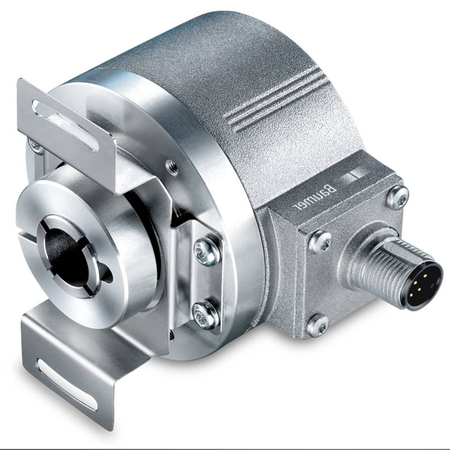

Baumer incremental optical programmable encoder 11127691.

The EIL580P-TT15.5FF.01024.B is an incremental encoder with an optical sensor designed for precise measurement of the angle of rotation of rotating motors. This encoder has programmable parameters that allow you to adjust the output signal and other characteristics.

This robust encoder is perfect for various industrial applications, providing reliable performance even in extreme conditions. Its ruggedized design ensures durability, while its modular platform allows for easy integration into existing systems.

Features:

• Universal Programmable Encoder Series EIL580P OptoPulse
• Based on a sophisticated modular platform
• Robust ruggedized mechanism with ShaftLock construction
• Through hollow shaft
• Avoid Electric Shock
• Based on a sophisticated modular platform.
• Robust ruggedized mechanism with ShaftLock construction.

Technical specifications:

• Size: 58 mm
• Protection type: IP65 without shaft lock, IP67 with shaft lock
• Connection: flange connector M23, radial
• Type of mounting: clamping flange
• Maximum speed: 12,000 rpm
• Supply voltage: 4.75…30 VDC
• Initialization time required:
• Output signal: TTL/RS422 or HTL/push-pull
• Output signal frequency: up to 300 kHz (TTL), up to 160 kHz (HTL)
• Number of pulses per revolution: 1…65536, programmable
• Shaft type: Blowless, flexible, 8…15 mm
• Housing material: Cast aluminum
• Maximum starting torque:
• Weight: approx. 300 g
