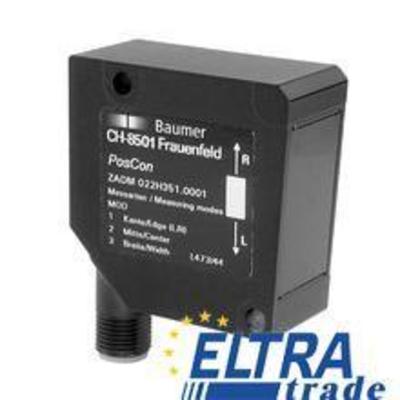

Edge sensor
SKU:
ZADM 023H151.0001
0.00€
Out of stock
One click request
Edge sensors designed for precise measurement. Ideal for applications requiring accurate detection of edges, centers, and widths in various environments.
Manufacturer:
Baumer
Description:
| current consumption max. (no load) | 150 mA |
| type | rectangular |
| connection types | connector M12 8 pin, rotatable |
| output signal | 4 … 20 mA |
| front (optics) | glass |
| measuring frequency | 500 Hz |
| operating temperature | 0 … +55 °C |
| output function | Out 1 / Alarm |
| response time | < 2 ms |
| light source | pulsed infrared diode |
| switching output | PNP |
| width / diameter | 23 mm |
| smallest object recognizable | 1,2 mm |
| adjustment | Teach-in |
| protection class | IP 67 |
| manufacter SKU | ZADM 023H151.0001 |
| type | measuring mode: edges, center, width |
| housing material | die-cast zinc |
| linearity error relative | < 0,3 % |
| voltage supply range +Vs | 15 … 28 VDC |
| wave length | 880 nm |
| measuring distance (to object) | 200 mm |
| reverse polarity protection | yes, Vs to GND |
| measuring field size | 150 mm |
| output current | < 100 mA |
| baud rate | 19200, adjustable |
| interface | analog and RS 485 |
| resolution | < 0,15 mm |
This Edge sensor is designed to operate in diverse environments with a wide range of features, ensuring reliable performance. With its robust design and high precision, it is perfect for industrial applications.
