Out of stock

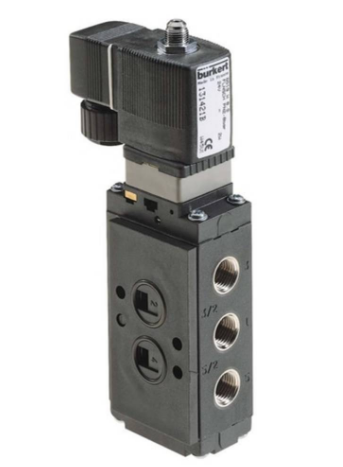

The Burkert 131421 Type 6519 is a versatile 3/2 and 5/2-way pneumatic valve designed for efficient control of double- or single-acting actuators. With a diameter of 6 mm and a flow capacity of 900 l/min, it operates within a pressure range of 2 to 10 bar.
Burkert 131421 standard solenoid pneumatic valve with 5/2- and 5/3-way. The valves can be used separately or as part of a single module. They operate without constant air flow and are used to control double- or single-acting actuators.
Datashet:
- 6519-W06,0-GM82-FS05-B5-024/DC-02
- ID number: 00131421
- Diameter: 6 mm
- 5/2 – W – normally open (NO)
- Value air: 900 l/min
- Pressure range: 2 – 10 bar
- G 1/4″ connections (connections 1 and 3), Namur flange (connections 2 and 4)
- Voltage: 24 V/DC
- Fluid temperature: -10 … +50°C
- Ambient temperature: -25 … +55°C
- Opening time: 20 ms
- Closing time: 40 ms
- Power consumption: 2 W
Thanks to the use of high-quality materials, it is possible to use Burkert 6519 valves both outdoors and in chemically aggressive atmospheres. This series includes devices with approval for use in hazardous areas and a NAMUR flange.
It is also suitable for single or modular installation. Low temperature versions are available, as well as standard and explosion-proof versions (EEx m, EEx i). Threaded and NAMUR connections can be ordered.
