The Bürkert 184566 is a 3/2-way pneumatic valve designed for applications requiring precise control of fluid flow. With a diameter of 10 mm and a normally closed operating mode, this valve ensures reliable operation under various conditions.

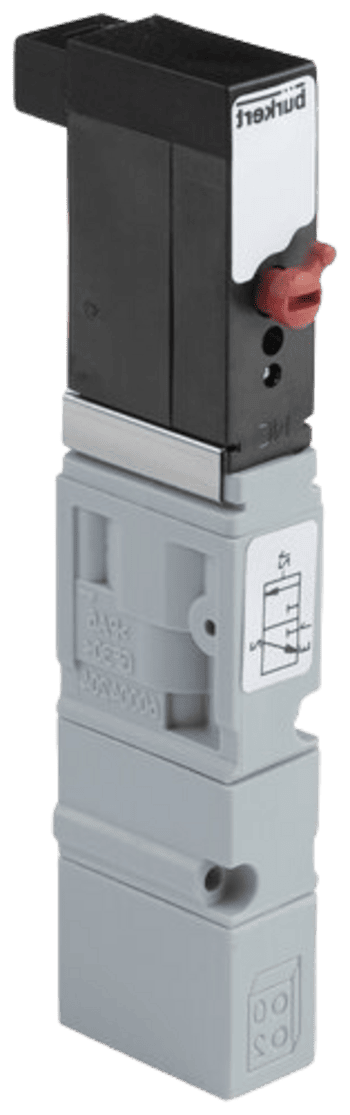

Bürkert 184566 3/2-way pneumatic valve
The Bürkert 184566 is a 3/2-way pneumatic valve with a diameter of 10 mm. It has a normally closed operating mode, i.e. the valve is closed at rest. The inlet port 1 (P/NC) is connected to the outlet port 2 (A/OUT) and the outlet port 3 (R/NO) is vented.
The valve is made of polyamide (PA) and is flanged. The operating pressure range is from 2.5 to 10 bar and the operating temperature is from -10 to 50 degrees Celsius. The maximum air flow rate is 300 liters per minute.
Datasheet:
- Type: 3/2-way
- Diameter: 10 mm
- Operating mode: normally closed
- Ports: P/NC, A/OUT, R/NO
- Material: polyamide (PA)
- Mounting: flanged
- Working pressure: 2.5-10 bar
- Operating temperature: -10-50 °C
- Maximum air flow rate: 300 l/min
