The Burkert eControl Type 8611 is a compact process controller designed to manage key variables such as flow, temperature, and pressure. Its compatibility with pneumatic and electric actuators makes it suitable for diverse industrial applications.

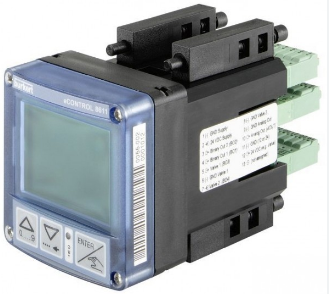

The Bürkert Type 8611 eCONTROL is a versatile process controller designed to regulate various process variables such as flow, temperature, pressure, pH value, conductivity, and level. This compact device is compatible with both pneumatic and electric actuators, making it suitable for a wide range of applications across different industries.
Datasheet:
- Control type: Proportional-integral (PI) controller.
- Input signals:
- Analog signals: 4-20 mA, 0-10 V.
- Frequency signals.
- Signals from Pt100 temperature sensor.
- Output signals:
- Analog signals: 4-20 mA, 0-10 V.
- PWM (pulse width modulation).
- Control modes:
- Continuous.
- 2-point.
- 3-point
- Turn on/off.
- Compatibility: Works with all Bürkert proportional valves and sensors, as well as other control valves with a standard signal.
- Temperature regime: From 0°C to 50°C.
- Power supply: 24 V DC.
- Display: Built-in LCD display for displaying parameters and settings.
Advantages:
- Versatility: Handles multiple control modes and process variables.
- Compatibility: Works with a wide range of Bürkert and non-Bürkert components.
- Compact Design: Saves space in control panels.
- Reliable Performance: Proven technology for accurate and stable control.
- User-Friendly: Intuitive operation and configuration.
