The Burkert 390905 3/2-way solenoid valve is a direct-acting valve designed for switching the flow of liquids or gases between two ports. This normally closed (NC) valve operates efficiently with a nominal diameter of 1.2 mm (3/64 in.).

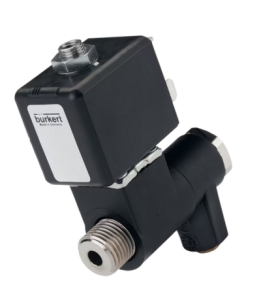

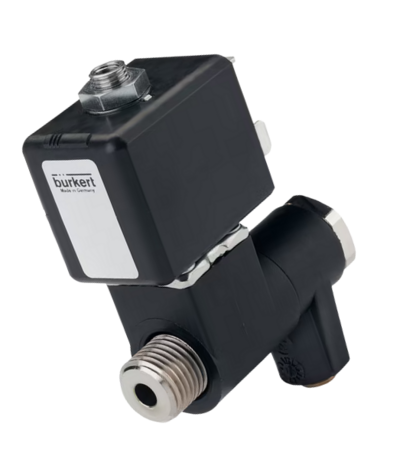

Burkert 390905 3/2-way solenoid valve
Burkert 390905 is a 3/2-way direct-acting solenoid valve. It is designed to switch the flow of liquid or gas between two ports. The valve is of the normally closed (NC) type, which means that it is closed in a no-voltage state. When voltage is applied, the valve opens, allowing flow to pass through.
Datasheet:
- Type: 3/2-way
- Action: direct
- Type: normally closed (NC)
- Nominal diameter: 1.2 mm (3/64 in.)
- Working pressure range: 0,00-11,5 bar
- Body: polyamide (PA)
- Fastening: fitting
- Voltage: 24 V DC
- Gland material: fluoroplastic (FKM)
- Operating temperature range: -10-60 °C
- Length: 25 mm
- Width: 15 mm
- Height: 15 mm
- Weight: 0.02 kg
- Jet flow rate: up to 10 m3/h
- Maximum working pressure: 16 bar
- Body: polyamide (PA)
- Nozzle: polyamide (PA)
- Valve: polyamide (PA)
- Gland: fluoroplastic (FKM)
Advantages:
- Reliable and durable
- Easy to use
- Wide operating temperature range
- Resistant to corrosion
- Low price
