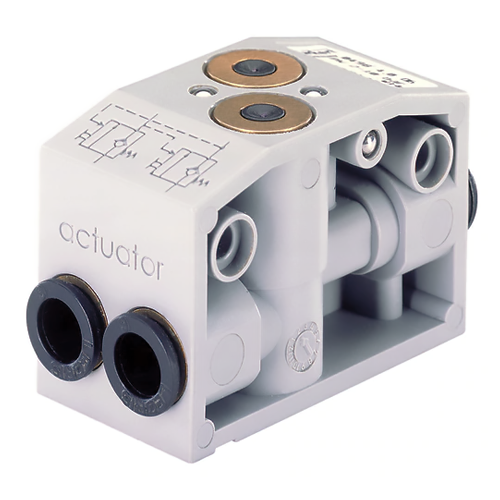

The Double check valve is designed to work with two 3/2-way valves to achieve a 5/3-way function. This valve ensures high performance with controlled non-return functionality, making it suitable for various pneumatic applications.
The Type 0498 valve contains two controlled non-return valves. By combining this controlled double check valve with two 3/2-way valves, a 5/3-way function can be realized with all ports blocked (operating principle L).
Specification:
- Compact design
- For individual valves or valve terminals
- High response speed
- high tightness throughout the life
- In the standard version with manual emergency ventilation pneumatic drive
- Body PA (polyamide)
- Port connection: Push-in 6 mm
- Weight 33 g
- Media temperature: -10…+50 °C
