The Burkert 139163 type 6126 direct-acting solenoid valve is designed for efficient switching of compressed air, gases, and slightly contaminated liquids. With a body made of brass and FKM seals, it ensures minimal heat transfer to the medium, making it suitable for general applications.

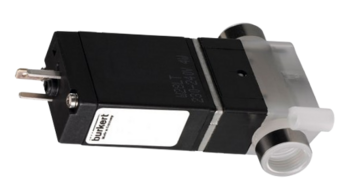

Burkert 139163 type 6126 direct-acting solenoid valve
The 139163 direct-acting solenoid valve type 6126 is designed for general applications in which compressed air, gases or slightly contaminated liquids need to be switched. The medium is only in contact with the body material and the FKM seals. The heat input to the medium is minimal because the body is separated from the spool by a steel plate. The valves can be mounted directly or also on a single or multiple mounting bracket. They are used for dosing, filling, mixing and distributing small quantities of media.
Datasheet:
- Type: 6126
- Size: 16 mm
- Number of positions: 3/2
- Type of connection: GP
- Body material: brass
- Material of seals: FKM
- Nominal pressure: 16 bar
- Rated current: 8 À
- Rated voltage: 24 V DC
Where it is used:
- Dosing
- Filling
- Mixing
- Dispensing
Advantages:
- Simple and reliable design
- Minimal heat input into the environment
- Possibility of direct or multiple installation
- Wide range of applications
