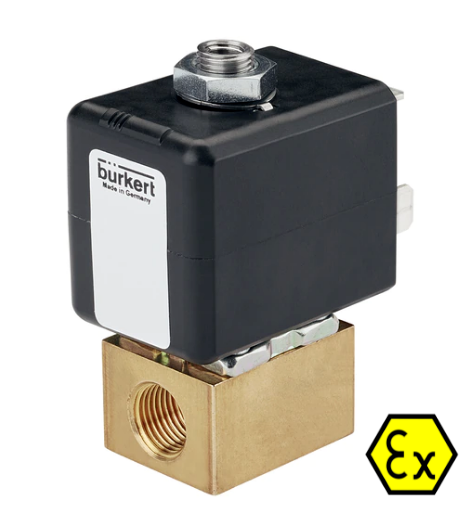

Burkert Type 7012

The 7012 valve is a direct-acting plunger valve. The stopper and the core guide tube are welded together to increase pressure resistance and leak-tightness. Various housing and seal material combinations are available depending on the actual application.

A Burkert-specific flange variant (SFB) enables the space-saving arrangement of valves on a multiple manifold. The range is supplemented by explosion-proof variants. Push-in fittings can be selected for a flexible hose connection.

A banjo fitting with banjo bolt is the ideal solution for easy direct mounting on a pneumatic actuator. Optional manual override enables quick start-up and optimal maintenance. In combination with a plug to industry standard shape B or DIN EN 17301-803 shape C, the valves satisfy degree of protection IP65.

Datsdheet:

• Direct-acting and compact small valve up to DN 1.6
• Slipped over coil system
• Banjo fitting for direct mounting on pneumatic valves
• Simple and fast push-in, flange or manifold mounting
• Explosion-proof variants
