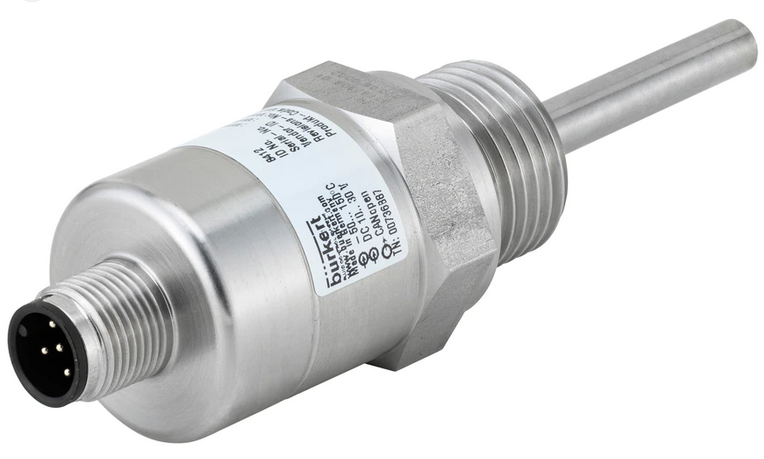

The RTD Temperature Sensor Type Pt1000 is designed for precise measurement of liquids and gases. It features a CANopen digital communication interface for efficient data transfer and processing.
Resistance thermometers are the preferred choice for measuring the temperature of liquids and gases. The design offers reliable tightness under negative and positive pressure. The measuring insert is equipped with a Pt1000 temperature sensor according to DIN EN 60751, Class A. The measured temperature value is digitised, linearised and made available via the CANopen digital communication interface (CAN slave) for further processing.
Instead of an analogue output, this device offers the CANopen digital interface. This allows bidirectional data transfer, e.g. with a CAN/Ethernet gateway or directly to a PLC that is equipped with a CAN interface.
CAN devices can also be connected to the Burkert buS digital communication interface. A driver used for data exchange and settings of the 8412 is integrated in the Burkert PC tool Communicator. Several useful auxiliary functions have been implemented through the DS 404 device profile.
Datasheet:
- Single resistance thermometer Type Pt1000
- Process connections: G½” or NPT½”
- Temperature measurement range: -50 … +150°C
- Limit value monitoring function
- Access to measured value, device status and settings via the CANopen interface
Burkert 8412 Models:
- 574638
- 574639
- 572069
- 574640
- 574641
