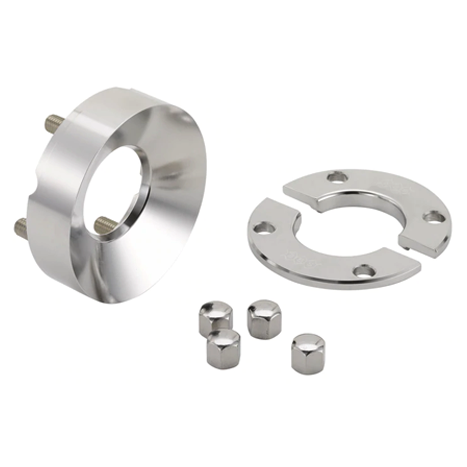

This block flange features an aseptic flange connection suitable for containers adhering to DIN11864-2 standards, along with a sterile orbital flange connection for enhanced reliability. It is designed for applications in biotechnology, pharmaceuticals, food, cosmetics, and the chemical industry.
Aseptic flange connection for containers DIN11864-2 (DIN11864-3) and sterile flange connection Orbital for containers. Design according to ASME BPE recommendations for sterile fittings.The products have European material certificates 3.1, FDA, USP VI.Product engraving is available upon request to track material and production date.
These blocks are designed to be easy to clean.
Specification:
-
DN up to 100 mm, medium temperature up to + 160C, depending on the seal.
- Pressure: up to 40 bar.
- Standard polished wetted surface Ra <0.8 µm, smoother surfaces on request.
Application:
- Biotechnology
- Pharmaceutical
- Food
- Cosmetic
- Chemical industry
745021 (00745021) BBS-07-BA-FA-010000VI-F159-HBHM-00038-00NK52+NO10
733654 (00733654) BBS-07-BA-FA-010000VI-F168-HBEM-00038-00NK52+NO10
733617 (00733617) BBS-07-BA-FA-015000VI-F213-HBHO-00051-00NK52+NO10
745028 (00745028) BBS-07-BA-FA-25,000VI-F070-HBHF-00025-00NK52+NO10
733682 (00733682) BBS-07-BA-FA-25,000VI-F074-HBEF-00025-00NK52+NO10
733690 (00733690) BBS-07-BA-FA-32,000VI-F082-HBEG-00032-00NK52+NO10
733621 (00733621) BBS-07-BA-FA-40,000VI-F082-HBHH-00032-00NK52+NO10
733695 (00733695) BBS-07-BA-FA-40,000VI-F088-HBEH-00032-00NK52+NO10
733624 (00733624) BBS-07-BA-FA-50,000VI-F094-HBHI-00032-00NK52+NO10
95775010 (95775010) BBS-07-BA-FA-50,000VI-F094-HBHI-00032-00NK52+NO10+Z757
733707 (00733707) BBS-07-BA-FA-50,000VI-F103-HBEI-00032-00NK52+NO10
745034 (00745034) BBS-07-BA-FA-65,000VI-F113-HBHK-00038-00NK52+NO10
733721 (00733721) BBS-07-BA-FA-65,000VI-F125-HBEK-00038-00NK52+NO10
733627 (00733627) BBS-07-BA-FA-80,000VI-F133-HBHL-00038-00NK52+NO10
733736 (00733736) BBS-07-BA-FA-80,000VI-F137-HBEL-00038-00NK52+NO10
733661 (00733661) BBS-07-BA-FB-010000VI-F168-HEDM-00038-00NK52+NO10
748178 (00748178) BBS-07-BA-FB-25,000VI-F074-HEDF-00053-00NF89+NK52+NO10
733701 (00733701) BBS-07-BA-FB-40,000VI-F088-HEDH-00032-00NK52+NO10
733716 (00733716) BBS-07-BA-FB-50,000VI-F103-HEDI-00035-00NK52+NO10
748167 (00748167) BBS-07-BA-FB-50,000VI-F103-HEDI-00054-00NK52+NO10
748194 (00748194) BBS-07-BA-FB-50,000VU-F103-HEDI-00061-00NF89+NK52+NO10
733730 (00733730) BBS-07-BA-FB-65,000VI-F125-HEDK-00038-00NK52+NO10
733742 (00733742) BBS-07-BA-FB-80,000VI-F137-HEDL-00038-00NK52+NO10
748499 (00748499) BBS-07-BB-CC-25,000VN-F085-TG04-00025-00NK52+NO16
748498 (00748498) BBS-07-BB-CC-40,000VN-F085-TG05-00025-00NK52+NO16
748496 (00748496) BBS-07-BB-CC-50,000VI-F100-TG06-00025-00NK52+NO16
748497 (00748497) BBS-07-BB-CC-50,000VN-F100-TG06-00025-00NK52+NO16
748631 (00748631) BBS-07-BB-CC-50,000VU-F100-TG06-00025-00NK52+NO17
748495 (00748495) BBS-07-BB-CC-80,000VI-F131-TG08-00025-00NK52+NO16
733911 (00733911) BBS-07-BB-CH-32,000VI-F105-HCEG-00025-00NK52+NO10
733932 (00733932) BBS-07-BB-CH-50,000VI-F136-HCEI-00025-00NK52+NO10
733942 (00733942) BBS-07-BB-CH-65,000VI-F151-HCEK-00025-00NK52+NO10
733954 (00733954) BBS-07-BB-CH-80,000VI-F175-HCEL-00025-00NK52+NO10
734324 (00734324) BBS-07-BC-FB-50,0ABVI-F103-HEFI-00047-GBNK52+NO10
741042 (00741042) BBS-07-BE-TB-40,0ABVI-SA46-0000-00000-GBNK52+NO10
