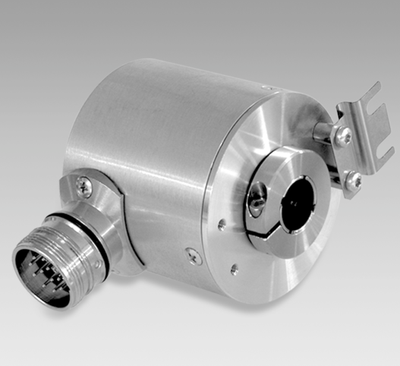

The Absolute Encoder ATD 2A A 4 Y 7 is designed for precise motion control with a voltage supply range of +12…30 VDC. It features reverse polarity protection and operates efficiently in temperatures from -20 to +85 °C.
This Absolute Encoder is equipped with a Connector M23 type 2, 12-pin for reliable connectivity and has an IP 65 protection rating for durability in challenging environments. The lightweight aluminum housing and stainless steel shaft ensure longevity and performance, while the optical sensing method provides high accuracy.
With a resolution of 16 bit and an operating speed of up to 8000 rpm, this encoder is suitable for various applications. It also supports multiple output stages, including voltage and current outputs, making it versatile for different systems.
| Voltage supply | +UB= 12…30 VDC (IS-/IE-/US-/UT-version) -UB= -12…-26 VDC / +UB 12…30 VDC (UE-/UR-version) |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤70 mA (24 VDC) |
| Operating temperature | -20…+85 °C |
