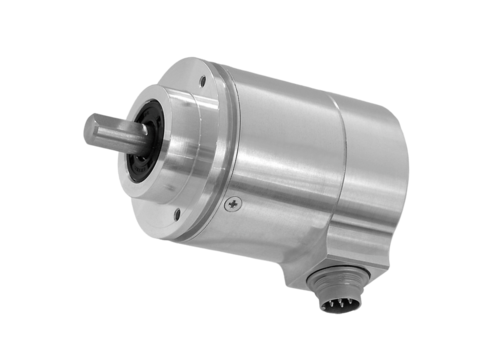

ATD 2S B14 Y21 absolute encoder, designed for precision and reliability in industrial applications.
- Features a 13-bit resolution for accurate measurements.
- Ideal for setups requiring optical sensing and robust performance.
The ATD 2S B14 Y21 is a high-precision absolute encoder from Baumer, designed for demanding industrial applications. This encoder features a solid shaft with a clamping flange, ensuring accurate and reliable position measurements. It provides analog signals with a 13-bit single-turn resolution, making it a versatile and reliable choice for various setups.
With a compact design and lightweight construction, it is easy to integrate into a wide range of systems. Its IP 67 protection rating guarantees dependable performance in harsh environments, while the optical sensing method ensures high-resolution feedback.
Datasheet
Electrical Ratings:
- Voltage Supply: 10…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤50 mA (24 VDC)
- Interface: SSI (Serial Synchronous Interface)
- Function: Singleturn
- Steps per Revolution: 8192 / 13 bit
- Sensing Method: Optical
- Code Type: Gray
- Code Sequence: CW: ascending values with clockwise sense of rotation (looking at mounting surface)
- Output Signal | Interface: SSI data: linedriver RS485
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): ø58 mm
- Shaft Type: ø10 mm solid shaft (clamping flange)
- Flange: Clamping flange
- Protection EN 60529: IP 67 (at shaft entrance)
- Operating Speed: ≤5000 rpm (mechanical), ≤8000 rpm (electric)
- Starting Torque: ≤0.05 Nm (+20 °C)
- Admitted Shaft Load: ≤40 N axial, ≤60 N radial
- Material: Housing: aluminium; Shaft: stainless steel
- Operating Temperature: -30…+85 °C
- Relative Humidity: 90 % non-condensing
- Resistance: EN 60068-2-6 Vibration 10 g, 55-2000 Hz; EN 60068-2-27 Shock 30 g, 11 ms
- Connection: Connector M16, 7-pin
- Weight: Approx. 350 g
Advantages
- High Resolution: Provides 8192 steps per revolution for precise position measurements.
- SSI Interface: Offers reliable and accurate data transmission with the SSI protocol.
- Internal Self-Diagnostic: Ensures reliable operation with built-in diagnostics.
- Robust Design: Durable construction with aluminium housing and stainless steel shaft.
- High Protection: IP 67 rating guarantees reliable performance in harsh environments.
- Compact and Lightweight: Easy to integrate into various setups.
