Out of stock

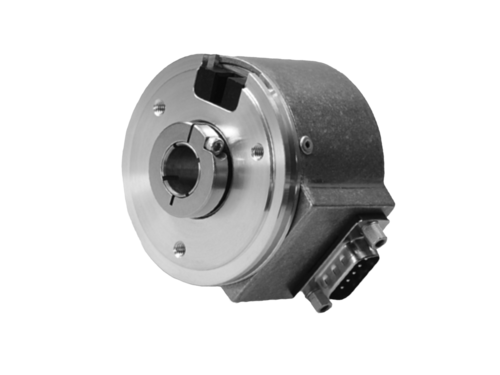

Baumer BFF CANopen® Absolute Encoder, featuring a blind or through hollow shaft of ø12 mm. This singleturn encoder utilizes optical sensing technology for accurate performance.
The Baumer BFF CANopen® is a high-precision absolute encoder that uses the optical tracking method and supports the CANopen® interface standard. It provides stable operation and high accuracy in demanding industrial environments.
This encoder is designed for versatility, featuring a compact size and robust construction that ensures longevity even in challenging conditions. Its advanced programmability allows customization for various applications, making it ideal for diverse industrial needs.
Datasheet
Electrical specifications:
- Supply voltage: 10…30 VDC
- Consumption (typical): 70 mA (24 VDC, no load)
- Initialization time: 170 ms after power on
- Interface: CANopen®.
- Function: Singleturn
- Profile compliance: CANopen® CiA DSP 301 4.01, DSP 305 V1.0, DSP 406 V3.0
- Number of steps per revolution: ≤8192 / 13 bits
- Absolute accuracy: ±0.025°
- Tracking method: Optical
- Code: Binary
- Code sequence: CW by default, programmable
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Programmable parameters:
- Operating modes
- General resolution
- Scaling
- Rotation speed monitoring
- Diagnostic functions
- Position or parameter errors
- Multitouring capability
- Approvals: UL approval / E217823
Mechanical design:
- Size (flange): ø58 mm
- Shaft type: ø12 mm (hollow blind shaft)
- Protection according to EN 60529: IP 42, IP 65
- Operating speed:
- ≤12,000 rpm (mechanical) IP 42
- ≤6,000 rpm (mechanical) IP 65
- ≤1830 rpm (electrical)
- Operating torque:
- 0.009 Nm (IP 42)
- 0.037 Nm (IP 65)
- Material:
- Body: aluminum
- Flange: aluminum
- Operating temperature: -20…+85 °C
- Relative humidity: 95 % without condensation
- Resistance:
- Vibration: EN 60068-2-6, 10 g, 10-200 Hz
- Shock: EN 60068-2-27, 50 g, 11 ms
- Connections: D-SUB connector, 9-pin
- Weight: approx. 300 g
Advantages:
- High accuracy: Provides precise speed measurement thanks to optical tracking.
- Resistant to conditions: Operates in a wide range of temperatures and humidity, allowing it to be used in a variety of environments.
- Rugged design: Highly resistant to vibrations, shocks, and industrial environments.
- Energy efficiency: Minimal power consumption reduces energy costs, which is important for long-term projects.
- Protection: High protection level of up to IP 65, making it suitable for use in wet and dust environments.
