Baumer BHF sine

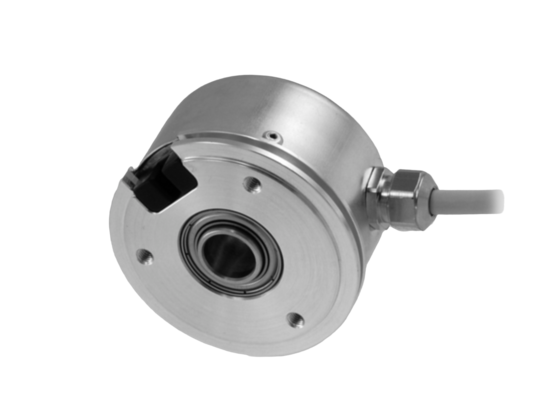

The BHF sine is an incremental encoder from Baumer that uses an optical reading method. It is available with a blind or through-hole shaft with a diameter of 12 mm.

This encoder is designed to operate efficiently within a wide range of conditions, offering high accuracy with up to 5000 sinusoidal cycles per revolution. Its robust construction ensures reliability and longevity in various applications.

Datasheet:

• Supply voltage: 5 VDC ±5%.
• Consumption: Typical 100 mA (5 VDC, no load)
• Number of sinusoidal cycles per revolution: 1000 … 5000
• Output signal frequency: ≤200 kHz (-3 dB)
• Output signals: A 90° B, N + inverted
• Output stages: SinCos 1 Vpp
• Immunity to interference: EN 61000-6-2
• Protection against radiated interference: EN 61000-6-3
• Protection: EN 60529 IP 65, IP 42
• Rotation speed: ≤12000 rpm (IP 42), ≤6000 rpm (IP 65)
• Material: Housing: aluminum, Flange: aluminum
• Operating temperature: -20…+85 °C
• Relative humidity: 95 % without condensation
• Vibration resistance: EN 60068-2-6, 10 g, 10-200 Hz
• Impact resistance: EN 60068-2-27, 50 g, 11 ms
• Connections: M23 connector, 12-pin, 2 m cable
• Weight: approx. 300 g.

Advantages:

• High accuracy: Thanks to the optical reading method and the high number of sinusoidal cycles per revolution.
• Compactness: The small profile depth allows the encoder to be installed in narrow spaces.
• Reliability: A high level of protection against interference and mechanical impact ensures stable operation in various conditions.
• Flexibility: The availability of various mounting and connection options allows the encoder to be used in various applications.
