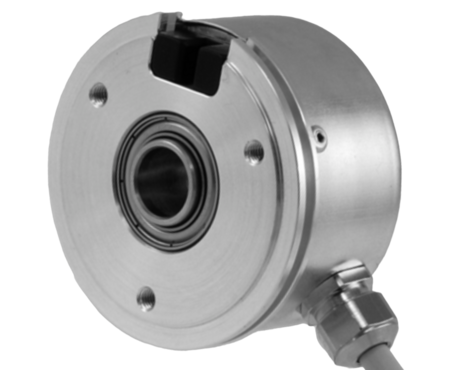

BHG 16.05A incremental encoders from Baumer, designed for precision and durability. These encoders utilize an advanced optical reading method to ensure accurate measurements.
BHG 16.05A – available with a blind or through hollow shaft with a diameter of 12 mm. These encoders provide high accuracy and reliability in measuring angular displacements.
With a supply voltage range and low current consumption, the BHG 16.05A is suitable for various applications. Its output signals are designed for optimal performance, ensuring interference resistance according to EN standards. Made from durable aluminum, these encoders are built to last under a variety of operating temperatures.
Datasheet:
- Supply voltage: 5 VDC ±10%, 10…30 VDC, 4.5…30 VDC
- Current consumption: 80 mA (5 VDC, no load), 180 mA (4.5 VDC, no load), 60 mA (24 VDC, no load)
- Pulses per revolution: 10 … 5000
- Reference signal: Zero pulse, 90° width
- Reading method: Optical
- Output signal frequency: ≤750 kHz
- Output signals: A 90° B, N + inverted
- Output stages: Antivalent, push-pull with short circuit protection
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Size (flange): Ø58 mm
- Shaft type: Ø12 mm (through hollow shaft)
- Protection: EN 60529 IP 42, IP 65
- Rotation speed: ≤12000 rpm (IP 42), ≤6000 rpm (IP 65)
- Material: Housing – aluminum, Flange – aluminum
- Operating temperature: -20…+85 °C
