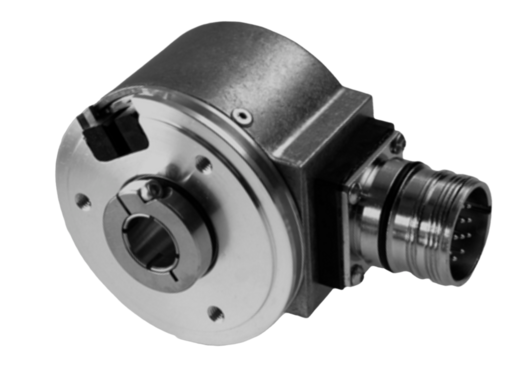

Baumer BHG, a high-resolution programmable incremental encoder designed for precision applications.
With optical sensing technology and a compact design, it delivers up to 320,000 pulses per revolution.
BHG is an incremental encoder featuring an advanced optical reading method, available with either a blind or through hollow shaft of 12 mm diameter.
Datasheet:
- Shaft diameter: 12 mm (dull or through hollow shaft)
- Reading method: Optical
- Maximum number of pulses per revolution: 5000
- Supply voltage: 5 VDC В±10 %, 10…30 VDC, 4.5…30 VDC
- Current consumption: 80 mA (5 VDC, no load), 180 mA (4.5 VDC, no load), 60 mA (24 VDC, no load)
- Output signal frequency: ≤750 kHz
- Output signals: A 90° B, N + inverse
- Resistance to interference: EN 61000-6-2
- Protection: IP 42, IP 65
- Maximum rotation speed: ≤12000 rpm (IP 42), ≤6000 rpm (IP 65)
- Body material: Aluminum
- Operating temperature: -20…+85 °C
- Relative humidity: 95% non-condensing
- Connection: M23 connector, 12-pin, 2 m cable
- Weight: Approximately 300 g
This encoder is ideal for applications requiring high accuracy and reliability in a compact form factor, making it a versatile choice for various industrial environments.
