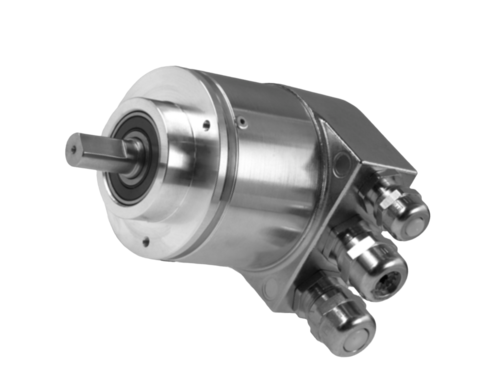

BMSK 42 CANopen® – MAGRES absolute encoder from Baumer, a reliable solution for precise position measurement. Ideal for demanding industrial applications, this compact encoder excels in accuracy and efficiency.
The BMSK 42 CANopen® – MAGRES is a compact absolute encoder from Baumer, designed for high-precision applications. It features a magnet bore shaft and provides CANopen® communication. This encoder uses magnetic sensing for position measurement and offers both single-turn and multi-turn resolutions.
With its robust design, this encoder is perfect for use in challenging environments, delivering exceptional performance and durability. Its ease of integration into various setups makes it a versatile choice for engineers. The BMSK 42 also supports programmable parameters, allowing for tailored solutions to fit specific application needs.
Datasheet
Electrical Ratings:
- Voltage Supply: 10…30 VDC
- Consumption (typ.): 100 mA (24 VDC, w/o load)
- Initializing Time (typ.): 170 ms after power on
- Interface: CANopen®
- Function: Singleturn / Multiturn
- Steps per Revolution: Singleturn: 12 bit, Multiturn: 18 bit
- Sensing Method: Magnetic
- Code: Binary
- Code Sequence: CW default, programmable
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): ø42 mm
- Shaft Type: ø6 mm (magnet bore)
- Flange: Clamping flange
- Protection EN 60529: IP 67
- Operating Speed: ≤12000 rpm (mechanical), ≤6000 rpm (electric)
- Gap Tolerance: ≤0.3 mm axial, ≤0.1 mm radial
- Material: Housing: steel; Flange: aluminium
- Operating Temperature: -20…+85 °C
- Relative Humidity: 95 %
- Resistance: EN 60068-2-6 Vibration 30 g, 10-2000 Hz; EN 60068-2-27 Shock 500 g, 6 ms
- Weight: Approx. 190 g
- Connection: Connector M12, 5-pin
Advantages
- High Resolution: Provides 12-bit single-turn and 18-bit multi-turn resolutions for precise position measurements.
- CANopen® Interface: Ensures reliable and accurate data transmission with the CANopen® protocol.
- Magnetic Sensing: Offers robust and accurate position measurement.
- Compact Design: Small size (ø42 mm flange) allows for easy integration into various setups.
- High Protection: IP 67 rating ensures reliable performance in harsh environments.
- Shock and Vibration Resistance: High resistance to shock and vibrations guarantees durability.
- Programmable Parameters: Allows for customization of operating modes, total resolution, scaling, and rotation speed monitoring.
