Baumer BRID – EcoMag

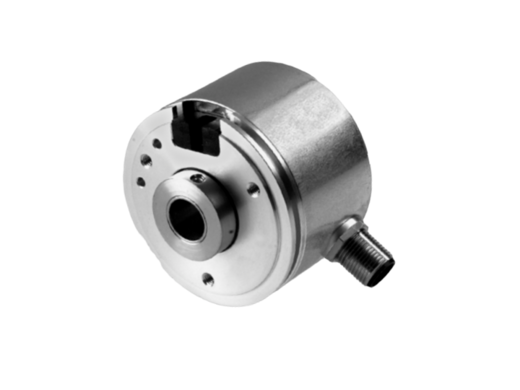

The BRID – EcoMag is an incremental encoder from Baumer, designed for high-precision applications. It features a through hollow shaft and magnetic sensing technology, making it ideal for environments requiring robust performance and reliability.

With a wide range of pulses per revolution, this encoder is perfect for various applications needing accuracy and consistency.

Its high resistance to shock and vibrations guarantees that it operates effectively even in the most challenging conditions.

In addition, the EcoMag BRID’s compact design facilitates easy integration into existing systems, enhancing versatility across different projects.

Datasheet:

• Sensing Method: Magnetic
• Pulses per Revolution: 64 to 2048
• Output Signals: A, B, N (inverted)
• Operating Voltage: 5 VDC (±10%) or 10-30 VDC
• Operating Speed: Up to 12,000 rpm (IP42) or 60,000 rpm (IP65)
• Protection: IP42, IP65
• Operating Temperature: -20°C to 85°C
• Relative Humidity: 95% non-condensing
• Vibration Resistance: 30 g, 10-2000 Hz
• Output Frequency: Up to 320 kHz
• Size (Flange): 58 mm
• Shaft Type: Through hollow shaft (12 mm)
• Material: Aluminium housing and flange

Advantages:

• High Resolution: Offers a wide range of pulses per revolution for precise measurements.
• Shock and Vibration Resistance: High resistance to shock and vibrations ensures reliable performance in demanding environments.
• Versatility: Suitable for various applications due to its wide pulse number range and high limit frequency.
• Compact Design: The through hollow shaft design allows for easy integration into existing systems.
• Environmental Protection: High IP ratings ensure protection against dust and water, making it suitable for harsh conditions.
