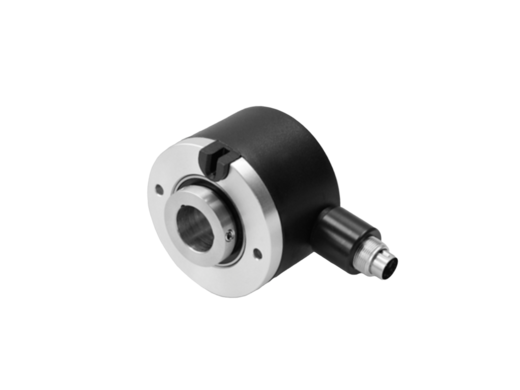

Baumer BRIH 40D1605A01000E25

The BRIH 40D1605A01000E25 is a mini incremental encoder designed for exceptional accuracy and durability.

Datasheet:

• Sensing Method: Magnetic
• Pulses per Revolution: 2 to 1024
• Output Signals: A (90°), B, N (inverted)
• Operating Voltage: 5 VDC (±10%) or 20-28 VDC
• Operating Speed: Up to 12,000 rpm (IP42) or 60,000 rpm (IP65)
• Protection: IP42, IP65
• Operating Temperature: -20°C to 85°C
• Relative Humidity: 95% non-condensing
• Vibration Resistance: 30 g, 10-2000 Hz
• Output Frequency: Up to 320 kHz
• Size (Flange): 40 mm
• Shaft Type: Blind hollow shaft (6 mm or 12 mm)
• Material: Aluminium housing and flange

Advantages:

• High Resolution: Offers a wide range of pulses per revolution for precise measurements.
• Shock and Vibration Resistance: High resistance to shock and vibrations ensures reliable performance in demanding environments.
• Compact Design: The blind hollow shaft design allows for easy integration into existing systems.
• Environmental Protection: High IP ratings ensure protection against dust and water, making it suitable for harsh conditions.
• Versatility: Suitable for various applications due to its high resolution and reliability.

This encoder is perfect for both industrial and commercial applications, providing a dependable solution for motion control and feedback systems.
