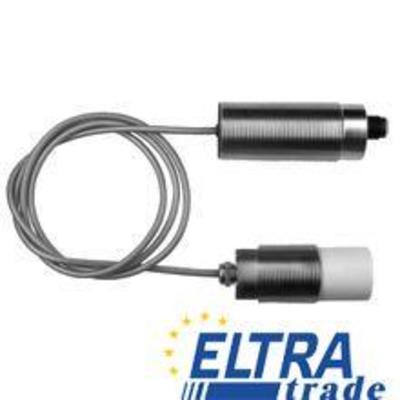

CFAH 30P1200/S14 capacitive proximity sensors, designed for high-temperature applications.
With an adjustable nominal sensing distance and robust construction, these sensors provide reliable performance in challenging environments.
| mounting type | non-flush |
| protection class | IP 65 |
| temperature drift | ± 16 % |
| nominal sensing distance Sn | 15 mm |
| nominal sensing distance Sn adjustable | 4 … 15 mm |
| object detection / bulk goods | no |
| manufacter SKU | CFAH 30P1200/S14 |
| current consumption max. (no load) | 15 mA |
| fill level detection through container | no |
| reverse polarity protection | yes |
| switching frequency | < 50 Hz |
| detection of non-conductive media | yes |
| type | cylindrical threaded |
| operating temperature | -25 … +75 °C |
| output current | < 200 mA |
| voltage supply range +Vs | 10 … 35 VDC |
| sensitivity adjustment | potentiometer, 18 turn |
| operating temperature | -40 … +200 °C |
| output indicator | LED |
| housing length | 65 mm |
| GND electrode | no |
| voltage drop Vd | < 2,5 VDC |
| housing material | brass nickel plated |
| protection class | IP 67 |
| housing material | V2A/PTFE |
| connection types | connector M12 |
| CFAH 30P1200/S14 dimension | 30 mm |
| output circuit | PNP make function (NO) |
| liquids in direct contact | yes |
| short circuit protection | yes |
| special type | sensor for high temperatures |
This capacitive proximity sensor is engineered for precision and durability in extreme conditions, making it ideal for various industrial applications.
Its advanced features ensure optimal performance, providing users with reliable sensing capabilities.
