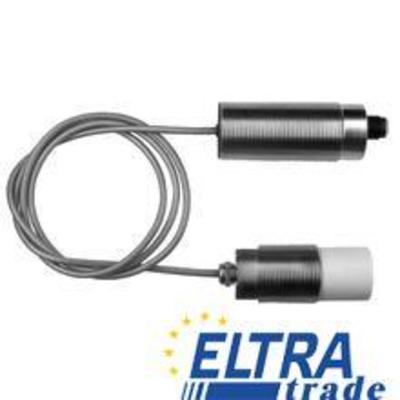

Capacitive Proximity Sensors designed for demanding applications.
With a sensing distance of up to 15 mm and a robust temperature range of -40 to +200 °C, these sensors ensure reliability in extreme conditions.
| GND electrode | no |
| housing length | 65 mm |
| liquids in direct contact | yes |
| reverse polarity protection | yes |
| output circuit | PNP break function (NC) |
| type | cylindrical threaded |
| nominal sensing distance Sn | 15 mm |
| sensitivity adjustment | potentiometer, 18 turn |
| fill level detection through container | no |
| housing material | brass nickel plated |
| special type | sensor for high temperatures |
| current consumption max. (no load) | 15 mA |
| temperature drift | ± 16 % |
| mounting type | non-flush |
| detection of non-conductive media | yes |
| voltage drop Vd | < 2,5 VDC |
| voltage supply range +Vs | 10 … 35 VDC |
| operating temperature | -40 … +200 °C |
| output indicator | LED |
| output current | < 200 mA |
| short circuit protection | yes |
| manufacter SKU | CFAH 30P3200/S14 |
| connection types | connector M12 |
| housing material | V2A/PTFE |
| nominal sensing distance Sn adjustable | 4 … 15 mm |
| object detection / bulk goods | no |
| protection class | IP 65 |
| CFAH 30P3200/S14 dimension | 30 mm |
| switching frequency | < 50 Hz |
| protection class | IP 67 |
| operating temperature | -25 … +75 °C |
This sensor is engineered to provide accurate detection even in high-temperature environments, making it ideal for various industrial applications.
Its durable construction and advanced features guarantee long-lasting performance and reliability.
