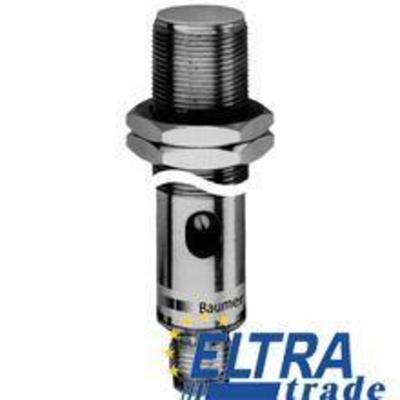

Capacitive proximity sensor
SKU:
CFAM 18P1600/S14
0.00€
Out of stock
One click request
CFAM 18P1600/S14 capacitive proximity sensors, designed for precise sensing applications.
With a nominal sensing distance of up to 8 mm and adjustable settings, this sensor caters to various needs.
Manufacturer:
Baumer
Description:
| connection types | connector M12 |
| GND electrode | yes |
| current consumption max. (no load) | 20 mA |
| housing material | brass nickel plated |
| type | cylindrical threaded |
| nominal sensing distance Sn | 8 mm |
| voltage drop Vd | < 1,5 VDC |
| object detection / bulk goods | yes |
| protection class | IP 65 |
| voltage supply range +Vs | 10 … 30 VDC |
| reverse polarity protection | yes |
| CFAM 18P1600/S14 dimension | 18 mm |
| temperature drift | В± 15 % (+10 … +70 °C) |
| liquids in direct contact | no |
| output current | < 200 mA |
| fill level detection through container | yes |
| switching frequency | < 50 Hz |
| output circuit | PNP make function (NO) |
| manufacter SKU | CFAM 18P1600/S14 |
| output indicator | LED yellow |
| operating temperature | -25 … +75 °C |
| short circuit protection | yes |
| nominal sensing distance Sn adjustable | 2 … 8 mm |
| sensitivity adjustment | potentiometer, 12 turn |
| housing length | 78,5 mm |
| mounting type | flush |
| detection of non-conductive media | yes |
This sensor is ideal for applications requiring reliable performance in challenging environments. Its robust design and advanced features make it a top choice for various industrial settings.
