Force sensor
SKU:
DLM20-BU.500.CP3.M4
0.00€
Out of stock
One click request

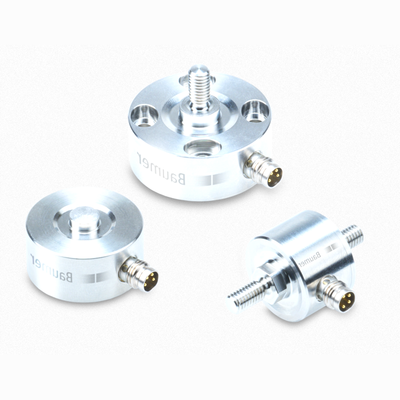

DLM20-BU.500.CP3.M4 Force Sensor, ideal for precise compression load measurements up to 50 N. This durable sensor features a compact design, making it perfect for applications with limited space.
Manufacturer:
Baumer
Description:
| Baumer Article no | 11217575 |
| Measuring range | 0 … 50 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Button |
| Mechanical mounting | 4 x M2 screws / loose |
| Dimensions | x 19 mm x 11 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0…100% FS |
| Nominal displacement | 13 ¼m |
| Weight | 14 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M5, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 © |
| Supply voltage | 0.5 … 12 VDC |
| Signal polarity positive | Compression |
| Operating temperature range | -40 … 85 В°C |
| Storage temperature range | -40 … 85 В°C |
| Protection class EN 60529, ISO20653 | IP 67 |
| UL listed | E217824 |
This sensor is designed with a stainless steel body ensuring durability and protection against environmental factors, rated at IP67. With a fully welded design, it guarantees a 100% working stroke, making it ideal for long-term applications.
