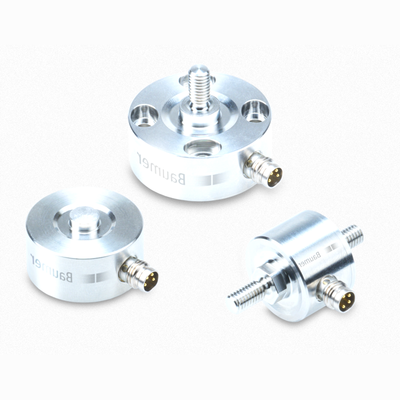

DLM20-IN.102.TP3.M4 Force Sensor, designed for precise tension and compression measurements. With a measuring range of 0 to 1000 N, this sensor boasts a non-linearity of less than 0.2% for reliable performance.
| Baumer Article no | 11217612 |
| Measuring range | 0 … 1000 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Inline |
| Mechanical mounting | M4 thread / M4 thread |
| Dimensions | x 19 mm x 16 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0…100% FS |
| Nominal displacement | 15 ¼m |
| Weight | 22 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M5, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 © |
| Supply voltage | 0.5 … 12 VDC |
| Signal polarity positive | Tension |
| Operating temperature range | -40 … 85 В°C |
| Storage temperature range | -40 … 85 В°C |
| Protection class EN 60529, ISO20653 | IP 67 |
| UL listed | E217824 |
The sensor’s robust stainless steel design ensures durability and long-term reliability in various applications. With an IP67 protection class, it is well-suited for challenging environments. Experience precision and efficiency with this advanced force sensor.
