Force sensor
SKU:
DLM20-SO.501.TP3.M4
0.00€
Out of stock
One click request

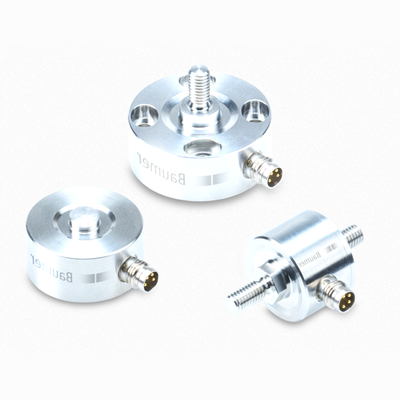

DLM20-SO.501.TP3.M4 Force Sensor, ideal for measuring tension and compression loads up to 500 N.
With a compact design and robust stainless steel body, it ensures reliability in limited space conditions.
Manufacturer:
Baumer
Description:
| Baumer Article no | 11217606 |
| Measuring range | 0 … 500 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Screw-on |
| Mechanical mounting | 4 x M2 screws / M4 thread |
| Dimensions | x 25.8 mm x 10 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0…100% FS |
| Nominal displacement | 16 ¼m |
| Weight | 23 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M5, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 © |
| Supply voltage | 0.5 … 12 VDC |
| Signal polarity positive | Tension |
| Operating temperature range | -40 … 85 В°C |
| Storage temperature range | -40 … 85 В°C |
| Protection class EN 60529, ISO20653 | IP 67 |
| UL listed | E217824 |
This sensor is engineered for durability, providing a 100% working stroke and is fully welded to ensure long-term performance. With an IP67 protection rating, it withstands harsh environments while delivering precise measurements.
