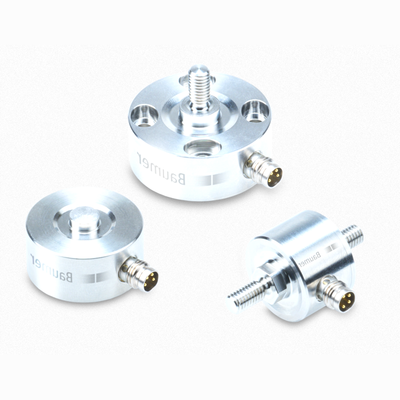

Force Sensor, art. 11217758, designed for precision in tension and compression measurements. With a load capacity of 0 … 500 N and impressive non-linearity of less than 0.2%, this sensor ensures accuracy and reliability.
| Baumer Article no | 11217758 |
| Measuring range | 0 … 500 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Inline |
| Mechanical mounting | M6 thread / M6 thread |
| Dimensions | x 25.5 mm x 23 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0…100% FS |
| Nominal displacement | 22 ¼m |
| Weight | 55 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M8, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 © |
| Supply voltage | 0.5 … 12 VDC |
| Signal polarity positive | Tension |
| Operating temperature range | -40 … 85 В°C |
| Storage temperature range | -40 … 85 В°C |
| Protection class EN 60529, ISO20653 | IP 68 |
| UL listed | E217824 |
This durable force sensor is crafted from stainless steel and features a fully welded design, ensuring long-lasting performance even in demanding environments. Its compact size and easy mounting with an integrated hexagon make it perfect for various applications.
