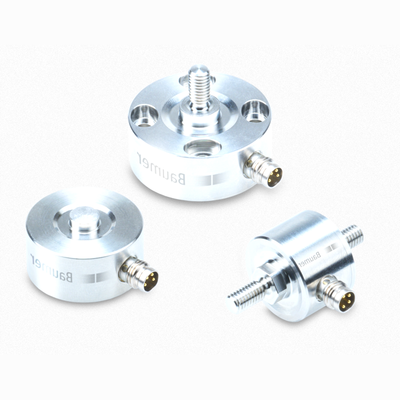

Force Sensor DLM30-IN.502.TP3.C4 is designed for both tension and compression loads, ranging from 0 to 5,000 N. This robust sensor features a stainless steel body and an IP68 protection class, ensuring durability and reliability in various environments.
| Baumer Article no | 11217781 |
| Measuring range | 0 … 5000 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | 0.2 % / 10K |
| Zero point deviation | 20 % |
| Type | Inline |
| Mechanical mounting | M6 thread / M6 thread |
| Dimensions | x 25.5 mm x 23 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0…100% FS |
| Nominal displacement | 22 ¼m |
| Weight | 55 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M8, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 © |
| Supply voltage | 0.5 … 12 VDC |
| Signal polarity positive | Tension |
| Operating temperature range | -40 … 85 В°C |
| Storage temperature range | -40 … 85 В°C |
| Protection class EN 60529, ISO20653 | IP 68 |
| UL listed | E217824 |
This sensor is fully welded for an enhanced lifespan and features a compact design that ensures easy installation. With a superior repeatability of 0.1% and a reliable operational temperature range, it is perfect for demanding applications.
