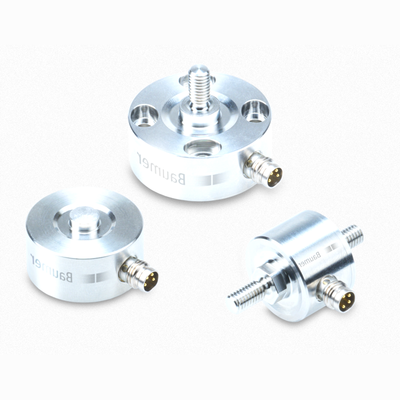

Force sensor
SKU:
DLM40-BU.203.CP3.C4
0.00€
Out of stock
One click request
DLM40-BU.203.CP3.C4 Force Sensor, designed for reliable measurements. Ideal for applications requiring a compression load of up to 20 kN, this sensor features a robust stainless steel body.
Manufacturer:
Baumer
Description:
| Baumer Article no | 11217785 |
| Measuring range | 0 … 20 kN |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Button |
| Mechanical mounting | 4 x M3 screws / loose |
| Dimensions | x 38 mm x 21 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0…100% FS |
| Nominal displacement | 28 ¼m |
| Weight | 100 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M8, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 © |
| Supply voltage | 0.5 … 12 VDC |
| Signal polarity positive | Compression |
| Operating temperature range | -40 … 85 В°C |
| Storage temperature range | -40 … 85 В°C |
| Protection class EN 60529, ISO20653 | IP 68 |
| UL listed | E217824 |
Built to withstand harsh environments, the sensor is fully welded for durability. It guarantees a 100% working stroke, ensuring reliability in your measurements. Experience optimal performance with a device engineered for precision and longevity.
