Discover the advanced DSRT 22DD-S5-0350 strain sensor, perfect for precise measurements in various applications.
This high-sensitivity gauge from Baumer features an integrated amplifier for optimal performance.

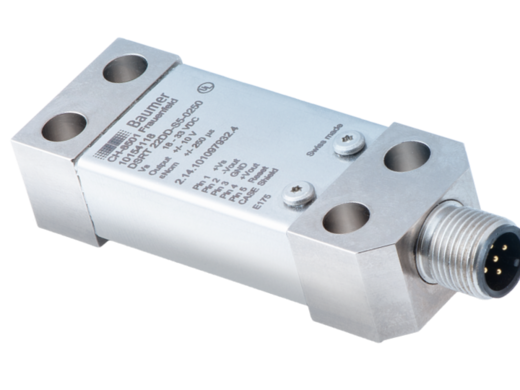

The DSRT 22DD-S5-0350 is a strain gauge designed for cyclic and static measurements. Baumer strain gauge features an integrated amplifier and provides high sensitivity and excellent signal-to-noise ratio.
Datasheet:
- Output signal: ±10 VDC
- Measuring range: ±100 με to ±750 με (microstrain)
- Nonlinearity: < 0,5%
- Power supply: 18 … 33 VDC
- Operating temperature: 0 … 70 °C
- Protection class: IP65
- Housing material: Nickel-plated steel 1.7225, stainless steel cover 1.4301
- Dimensions: 26 mm x 17 mm x 69 mm
- Mounting: 4 M62 screws.
Advantages:
- High accuracy: Due to low nonlinearity and high sensitivity.
- Reliability: High protection class IP65 ensures reliable operation in various conditions.
- Versatility: Suitable for a variety of applications, both static and dynamic.
- Ease of use: Integrated amplifier and automatic zero point adjustment.
This strain gauge is engineered for durability and precision, making it an ideal choice for both industrial and research environments. Its robust design ensures consistent performance, even in challenging conditions.
