Solid shaft with clamping flange
SKU:
EAL580-SC - PROFINET optoTurn
0.00€
Out of stock
One click request

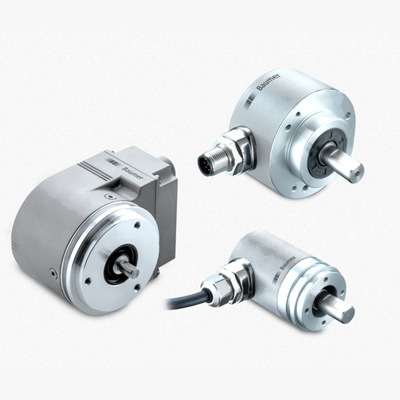

EAL580-SC PROFINET optoTurn is an advanced absolute encoder designed for precision applications. It features optical sensing technology for high accuracy and reliability.
Manufacturer:
Baumer
Description:
| Baumer Article no | 10117669 |
| Voltage supply | 10…30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | 100 mA (24 VDC) |
| Interface | PROFINET IO |
| Function | Multiturn |
| Steps per revolution | 262144 / 18 bit (adjustable) |
| Number of revolutions | 65536 / 16 bit (adjustable) |
| Total resolution | 31 bit |
| Absolute accuracy | В±0.01 ° (ST 18 bit / MT 13 bit) В±0.025 ° (ST 13 bit / MT 16 bit) |
| Sensing method | Optical |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-4 |
| Status indicator | 4x LED integrated in housing |
| Approval | UL approval / E63076 |
| Size (flange) | Ø58 mm |
| Shaft type | Ø10 x 20 mm, solid shaft with flat |
| Flange | Clamping flange |
| Protection EN 60529 | IP 54, IP 65, IP 67 |
| Operating speed | 10000 rpm (mechanical), 6000 rpm (electric) |
| Starting acceleration | 1000 U/s² |
| Starting torque | 0.03 Nm (+25 °C, IP 65/IP 67), 0.015 Nm (+25 °C, IP 54) |
| Rotor moment of inertia | 20 gcm² |
| Admitted shaft load | 20 N axial, 40 N radial |
| Material | Housing: zinc diecast, Flange: aluminium |
| Operating temperature | -40…+85 °C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6 Vibration В±0.75 mm – 10-58 Hz 10 g – 58-2000 Hz EN 60068-2-27 Shock 100 g, 2 ms |
| Weight approx. | 500 g |
| Connection | Flange connector 3 x M12 |
This encoder is ideal for applications requiring high performance in challenging environments, offering robust construction and exceptional durability.
