Baumer EAL580-SC0.5WPT.13160.A

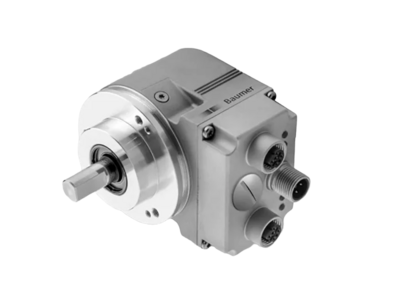

The EAL580-SC0.5WPT.13160.A is a multi-turn absolute encoder with solid shaft and clamping flange. It supports the PROFINET IO interface, which makes it easy to integrate into modern automated systems.

This encoder features a durable design, capable of operating in harsh environments due to its high IP 65 protection level. With a wide operating temperature range from -40 to +85 °C, it is suitable for various industrial applications. The optical measurement method not only enhances accuracy but also provides stability over time.

Datasheet:

• Measurement method: Optical
• Resolution:
• Single-ended Resolution: 13 bits
• Multi-reverse: 16 bits
• Power supply voltage: 10…30 V DC
• Consumption without load: ≤100 mA (24 VDC)
• Interface: PROFINET IO
• Number of steps per revolution: 8192 / 13 bits
• Number of revolutions: 65536 / 16 bits
• Total resolution: 29 bits
• Absolute accuracy: ±0.01° (ST 18 bit / MT 13 bit), ±0.025° (ST 13 bit / MT 16 bit)
• Protection: IP 65
• Operating speed: ≤10000 rpm (mechanical), ≤6000 rpm (electric)
• Housing material: Zinc die-cast
• Flange material: Aluminum
• Operating temperature: -40…+85 °C
• Weight: approx. 500 g
• Connection: Flange connector 3xM12

Advantages:

• High accuracy: The optical measurement method ensures high accuracy and stability.
• Resistance to magnetic fields: Maximum resistance to magnetic fields ensures reliable operation in harsh environments.
• Easy integration: The PROFINET IO interface makes it easy to integrate the encoder into existing automation systems.
• Wide operating temperature range: The encoder can operate in extreme temperature conditions from -40 to +85 °C.
• Reliability: The high IP 65 protection level provides protection against dust and water.
