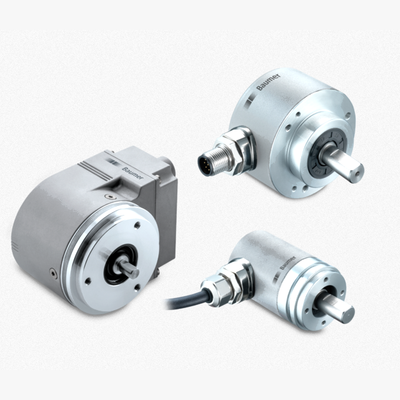

Solid shaft encoder
SKU:
EAM280 - CANopenВ®
0.00€
Out of stock
One click request
Solid shaft encoder EAM280 offers precise singleturn measurements with a CANopen® interface. Its contactless measuring method and robust magnetic sensing ensure durability and reliability in harsh environments.
Manufacturer:
Baumer
Description:
| Voltage supply | 10…30 VDC |
| Reverse polarity protection | Yes |
| Short-circuit proof | Yes |
| Consumption typ. | 14 mA (24 VDC, w/o load) |
| Initializing time | 15 ms after power on |
| Interface | CANopen® |
| Update time | 20 ms |
| Function | Singleturn |
| Profile conformity | CANopen® CiA communication profile DS 301, LSS profile DSP 305, device profile DS 406 |
| Measuring range | 0…360° |
| Steps per revolution | 16384 / 14 bit |
| Linearity | В±0.25 % FS |
| Absolute accuracy | В±1 ° (+25 °C) |
| Sensing method | Magnetic |
| Code sequence | CW: ascending values with clockwise sense of rotation; looking at flange |
| Output stages | CAN-Bus, LV (3.3 V) compatible ISO 11898 |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-3 |
| Size (flange) | Ø48 mm, housing 28.6 mm |
| Shaft type | Ø6 mm, solid shaft with flatPush-on coupling |
| Protection EN 60529 | IP 65IP 67 |
| Operating speed | 3000 rpm |
| Starting torque | 0.5 Nm (+25 °C) |
| Admitted shaft load | 10 N axial10 N radial |
| Material | Housing: plastic (reinforced)Shaft: stainless steel |
| Operating temperature | -40…+85 °C |
| Service life | 20 million revolutions |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6Vibration 20 g, 10-2000 HzEN 60068-2-27Shock 50 g, 11 ms |
| Temperature changes | EN 60068-2-14, -40…+85 °C, 5 cycles |
| Weight approx. | 30 g |
| Connection | Cable 0.3 m, radialCable 0.3 m with connector M12 |
This encoder is designed to withstand challenging environmental conditions, making it ideal for a variety of industrial applications. With a wide operating temperature range and robust construction, it guarantees long-lasting performance.
