EAM300-BF6.5L4G.12120.A is a top-tier absolute encoder designed for precision and reliability. Art. 11246732 ensures high performance in challenging environments.

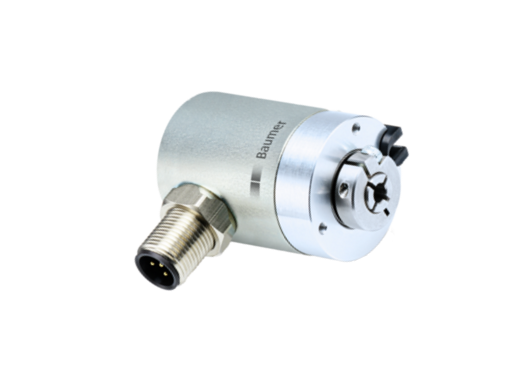

Baumer’s EAM300-BF6.5L4G.12120.A is a high-precision absolute encoder used to measure angular position. It provides high accuracy and reliability even in difficult operating conditions.
This encoder is engineered to deliver exceptional performance, even under extreme conditions. Users can benefit from its robust design, which includes a galvanized steel body and stainless steel hollow shaft. The encoder also features advanced technology for superior resolution and minimal error rates.
Datasheet:
- Shaft type: Blind hollow shaft with a diameter of 6 mm
- Resolution: Up to 32 bits (14 bits ST, 18 bits MT)
- Supply voltage: 4.5…30 VDC
- Consumption: Typical 60 mA (5 VDC, no load), 20 mA (24 VDC, no load)
- Interface: SSI
- Absolute accuracy: ±0.15° at +20 ±15 °C, ±0.25° at -40…+85 °C
- Rotation speed: Up to 6000 rpm
- Moment of inertia: 0.71 gcm²
- Material: Body – galvanized steel, flange – aluminum, hollow shaft – stainless steel
- Temperature range: -40…+85 °C
- Connection: Flange connector M12, 8-pin, cable 2 m
Advantages:
- High accuracy: The magnetic system provides accuracy up to ±0.15°.
- Vibration and shock resistance: Withstands vibrations up to 30g and shocks up to 500g.
- High degree of protection: IP67 provides protection against dust and moisture.
- Flexibility in connection: Possibility of radial or axial connection via connector or cable.
