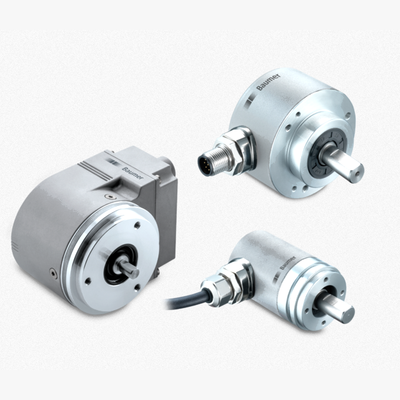

Discover the versatile Encoder kit, ideal for single- or multiturn applications with CANopenВ®. Experience precise magnetic sensing and exceptional angular accuracy.
With additional incremental signals and high protection up to IP 67, this encoder is engineered for reliability in challenging environments.
| Baumer Article no | 11046264 |
| Voltage supply | 10…30 VDC |
| Consumption typ. | 20 mA (24 VDC, w/o load) |
| Initializing time | 170 ms after power on |
| Data currency | <1 ms |
| Interface | CANopenВ®CANopenВ®-LiftCANopenВ® + incremental |
| Function | MultiturnSingleturn |
| Profile conformity | CANopenВ® CiA communication profile DSВ 301, LSS profile DSPВ 305, device profile DSВ 406, DSВ 417 |
| Steps per revolution | 16384 / 14В bit |
| Number of revolutions | 262144 / 18В bit |
| Absolute accuracy | В±0.15 В° (+20 В±15 В°C)В±0.25 В° (-40…+85 В°C) (see info working distance) |
| Sensing method | Magnetic |
| Code sequence | CW: ascending values with clockwise sense of rotation; looking at flange |
| Output stages | CAN-Bus, LV (3.3 V) compatible ISOВ 11898Incremental: linedriver RS422 or push-pull (option) |
| Incremental output | 1024, 2048, 4096 ppr (other on request) |
| Output signals | A+, A-, B+, B- |
| Output frequency | 350 kHz |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-4 |
| Approval | UL approval / E217823 |
| Size (flange) | ø36В mm |
| Shaft type | ø6В mm (magnet bore)ø8В mm (magnet bore)ø12В mm (magnet bore) |
| ProtectionВ ENВ 60529 | IPВ 67 |
| Operating speed | 6000 rpm |
| Working distance | 1.1 В±0.9 mm axial / 0.3 mm eccentricity |
| Material | Housing: steel zinc-coatedFlange: aluminium |
| Operating temperature | -40…+85В В°C (seeВ generalВ information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6Vibration 30В g, 10-2000 HzEN 60068-2-27Shock 500 g, 1 ms |
| Weight approx. | 170 g |
| Connection | Flange connector M12, 5-pinFlange connector M12, 8-pinCable 2 m |
This encoder kit is designed for high performance in industrial applications, offering robust construction and exceptional environmental resistance. With a wide range of features, it ensures optimal functionality and accuracy, making it a reliable choice for various automation tasks.
