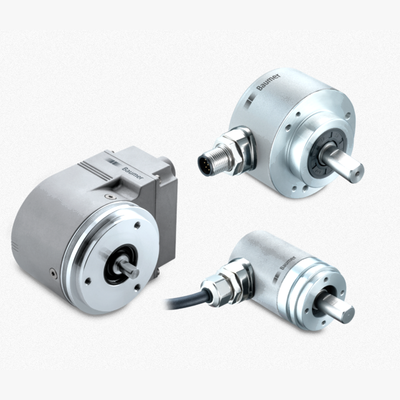

Encoder Kit designed for both single and multiturn applications with SSI interface. This advanced encoder offers precise magnetic sensing and exceptional angular accuracy.
The Encoder Kit features a robust design with a protection rating of IP 67, ensuring high resistance to dust and water. It operates efficiently with voltage supplies ranging from 4.5 to 30 VDC and provides an impressive resolution of up to 32 bits. Ideal for various industrial applications, it supports high clock frequencies up to 2 MHz, making it suitable for demanding environments.
| Baumer Article no | 10106004 |
| Voltage supply | 4.5…30 VDC (SSI, SSI + TTL/RS422)5.5…30 VDC (SSI + HTL/Push-pull) |
| Consumption typ. | 60 mA (5 VDC, w/o load)20 mA (24 VDC, w/o load) |
| Initializing time | 170 ms after power on |
| Data currency | Typ. 2 µs (cyclic request) |
| Interface | SSISSI + incremental |
| Function | MultiturnSingleturn |
| Operating mode | Linear feedback shift register (on request) |
| Steps per revolution | 16384 / 14 bit |
| Number of revolutions | 262144 / 18 bit |
| Absolute accuracy | ±0.15 ° (+20 ±15 °C)±0.25 ° (-40…+85 °C) |
| Sensing method | Magnetic |
| Code | Gray or binary |
| Code sequence | CW: ascending values with clockwise sense of rotation; looking at flange |
| Inputs | SSI clock: Linereceiver RS422Zero setting inputCounting direction |
| Output stages | SSI data: Linedriver RS422Incremental: linedriver RS422 or push-pull (option) |
| Incremental output | 1024, 2048, 4096 ppr (other on request) |
| Output signals | A+, A-, B+, B- |
| Output frequency | 350 kHz |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-4 |
| Diagnostic function | DATAVALID (on request) |
| Approval | UL approval / E217823 |
| Size (flange) | ø36 mm |
| Shaft type | ø6 mm (magnet bore)ø8 mm (magnet bore)ø12 mm (magnet bore) |
| Protection EN 60529 | IP 67 |
| Operating speed | 6000 rpm |
| Working distance | 1.1 ±0.9 mm axial / 0.3 mm eccentricity |
| Material | Housing: steel zinc-coatedFlange: aluminium |
| Operating temperature | -40…+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6Vibration 30 g, 10-2000 HzEN 60068-2-27Shock 500 g, 1 ms |
| Weight approx. | 170 g |
| Connection | Flange connector M12, 8-pinFlange connector M12, 12-pinCable 2 m |
