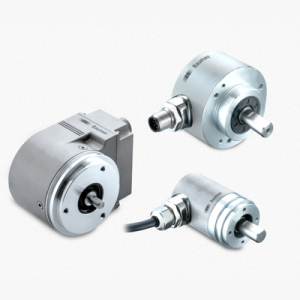

EAM580-SC is a high-performance solid shaft encoder designed for precise multiturn applications.
Featuring EtherNet/IP interface and magnetic sensing technology, it ensures exceptional accuracy and reliability.
| Baumer Article no | 11053277 |
| Voltage supply | 10…30 VDC |
| Consumption typ. | 90 mA (24 VDC, w/o load) |
| Initializing time | 10 s after power on |
| Interface | EtherNet/IP |
| Function | Multiturn |
| Steps per revolution | 16384 / 14 bit |
| Number of revolutions | 65536 / 16 bit |
| Absolute accuracy | В±0.15 ° (+20 В±15 °C)В±0.25 ° (-40…+85 °C) |
| Sensing method | Magnetic |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-4 |
| Status indicator | 4x LED integrated in housing |
| Approval | UL approval / E217823 |
| Size (flange) | Ø58 mm |
| Shaft type | Ø10 x 20 mm, solid shaft with flat |
| Flange | Clamping flange |
| Protection EN 60529 | IP 65 (without shaft seal)IP 67 (with shaft seal) |
| Operating speed | 6000 rpm |
| Starting torque | 2 Ncm (+20 °C, IP 65)2.5 Ncm (+20 °C, IP 67) |
| Moment of inertia | 15.38 gcm² |
| Admitted shaft load | 40 N axial80 N radial |
| Material | Housing: steel zinc-coatedFlange: aluminiumHollow shaft: stainless steel |
| Operating temperature | -40…+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6Vibration 30 g, 10-2000 HzEN 60068-2-27Shock 250 g, 6 ms |
| Weight approx. | 360 g |
| Connection | Flange connector 3 x M12 |
This encoder is designed to provide high levels of performance in demanding environments, making it ideal for a variety of industrial applications.
Its robust construction ensures longevity and reliability, while the advanced sensing technology delivers accurate measurements for optimized performance.
