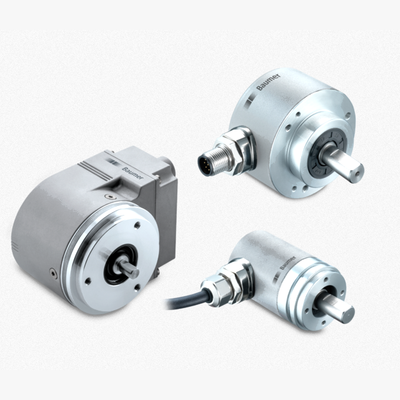

Blind Hollow Shaft Encoder is designed for single- or multiturn applications with analog output.
It features a robust construction with high protection ratings, making it suitable for demanding environments.
This Blind Hollow Shaft Encoder is ideal for precision measurement in various applications, offering both single- and multiturn capabilities.
With an E1 compliant design and IP 67 protection, it ensures durability against dust and water.
The encoder also boasts high resistance to shock and vibrations, making it reliable in challenging conditions.
| Baumer Article no | 10153968 |
| Voltage supply | 8…30 VDC14…30 VDC |
| Reverse polarity protection | Yes |
| Consumption typ. | 20 mA (24 VDC, w/o load) |
| Initializing time | 170 ms after power on |
| Response time | < 1 ms |
| Interface | Analog 0…10 V / 0.5…4.5 V / 4…20 mA / Resolution: 12 bit |
| Function | MultiturnSingleturn |
| Teach range | 5°…359.9° (singleturn)5°…32767 turns (multiturn) |
| Absolute accuracy | В±0.15 ° (+20 В±15 °C)В±0.25 ° (-40…+85 °C) sensor |
| Accuracy analog output | В±0.5 % of whole measuring range(-40…+85 °C) |
| Sensing method | Magnetic |
| Interference immunity | EN 61000-6-2ISO 11452-2:2004* / -5:2002*ISO 7637-2:2004*ISO 10605:2008 + Amd 1:2014 (CD В±8 kV / AD В±15 kV)* Severity level according to ECE R10 (Rev. 4) |
| Emitted interference | EN 61000-6-4CISPR 25:2008 (30…1000 MHz)ISO 7637-2:2004** Severity level according to ECE R10 (Rev. 4) |
| MTTFd (ISO 13849) | High (>100 years)Use in safety functions exclusively based on Application Note and MTTFd reliability prediction (request separately). |
| Programmable parameters | Measuring range teachable |
| Diagnostic function | DATAVALID |
| Factory setting | 360° and 10 revolutions (other on request) |
| Approval | UL approval / E217823 |
| Size (flange) | ø58 mm |
| Shaft type | ø10…15 mm (blind hollow shaft) |
| Protection EN 60529 | IP 67 (with shaft seal) |
| Operating speed | 6000 rpm |
| Starting torque | 2.5 Ncm (+20 °C, IP 67) |
| Moment of inertia | 46.75 gcm² |
| Material | Housing: steel, powder-coatedFlange: aluminiumHollow shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mistfor ambient conditions CX (C5-M) according to ISO 12944-2 |
| Operating temperature | -40…+85 °C (see general information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6Vibration 30 g, 10-2000 HzEN 60068-2-27Shock 500 g, 1 ms |
| Weight approx. | 250 g |
| Connection | Flange connector M12, 5-pinCable 2 m |
