Out of stock

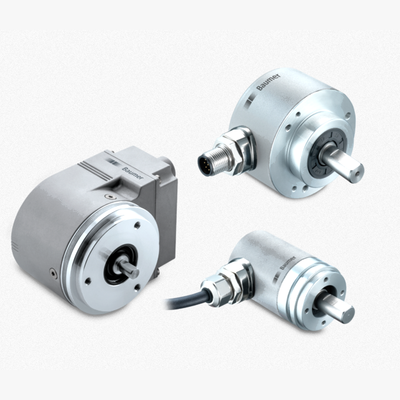

EAM580R-SC is an advanced analog encoder designed for both single and multiturn applications. With a robust construction and high protection rating of IP 67, it ensures reliable performance in challenging environments.
This encoder features a magnetic sensing method, providing exceptional accuracy and response times. It is equipped with a teach input for easy adjustment of the measuring range and is suitable for applications requiring up to PLd compliance (ISO 13849). The device is built to withstand high shock and vibration levels, ensuring durability and longevity.
| Baumer Article no | 10153968 |
| Voltage supply | 8…30 VDC / 14…30 VDC |
| Reverse polarity protection | Yes |
| Consumption typ. | 20 mA (24 VDC, w/o load) |
| Initializing time | 170 ms after power on |
| Response time | < 1 ms |
| Interface | Analog 0…10 V / 0.5…4.5 V / 4…20 mA / Resolution: 12 bit |
| Function | Multiturn / Singleturn |
| Teach range | 5°…359.9° (singleturn) / 5°…32767 turns (multiturn) |
