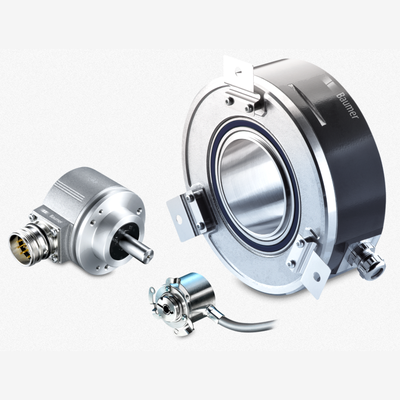

Bearingless Magnetic Ring Encoder offers a remarkable resolution of 32 to 1024 PPR, making it ideal for precise position and speed detection.
Experience enhanced performance with its parameterizable incremental encoder feature and convenience of IO-Link connectivity.
| Baumer Article no | 11705077 |
| Voltage supply | 8…30 VDC |
| Reverse polarity protection | Yes, to 0 V |
| Short-circuit proof | Yes |
| Consumption w/o load | 25 mA (24 VDC) |
| Initializing time typ. | 150 ms after power on |
| Pulses per revolution | 64 … 1024 32 … 512 |
| Interface | IO-Link |
| Interpolation | Parameterizable (8-fold default, 16-fold max.) |
| Output signals | A+ / IO-Link, B+ |
| Output stages | HTL/push-pull IO-Link |
| Output frequency | 160 kHz |
| System accuracy | Typ. В±0.5° (+20 °C, EBS.R-FN032/064) |
| Sensing method | Magnetic |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-3 |
| Approval | CE |
| IO-Link version | 1.1 |
| Device profile | Smart Sensor Profile 1.0 2nd Edition |
| IO-Link port type | Class A |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | 5 ms |
| Process data length | 72 Bit |
| Process data structure | Bit 0 = SSC1 (speed monitor) Bit 1 = SSC2 (direction monitor) Bit 3 = alarm Bit 4 = SSC3 (standstill monitor) Bit 8-39 = 32 Bit Position Bit 40-71 = 32 Bit Speed |
| Additional data | Device status Device temperature Operating time Revolutions count |
| Adjustable parameters | Interpolation Direction Poles per revolution Speed unit Speed filter Preset position Temperature alarm settings Switching point Switching mode Switching logic Switching hysteresis Output function Output logic Output startup settings |
| Shaft type | ø8…48 mm (through hollow shaft) |
| Dimensions W x H x L | 12 x 16 x 48 mm |
| Protection EN 60529 | IP 65 IP 67 |
| Operating speed | 6000 rpm |
| Working distance | 0.1 … 1.0 mm (radial air gap) В± 1.0 mm (axial misalignment) В± 1.0 mm (tangential misalignment) |
| Material | Housing: polyamide Cable sheath: PVC black |
| Operating temperature | -40…+85 °C |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6 Vibration 30 g, 10-2000 Hz EN 60068-2-27 Shock 500 g, 1 ms |
| Weight approx. | 230 g |
| Connection | Cable 5 m |
| Admitted cable length | 20 m |
