EEx GP 0,2 Tacho generator, designed for explosive environments. This Ex-approved device ensures optimal safety and performance.

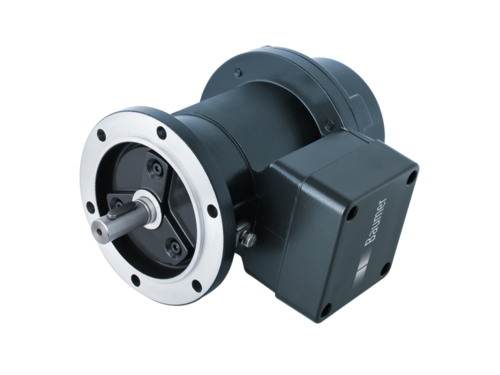

EExGP 0,2 Baumer HeavyDuty tacho generator
The EEx GP 0,2 is a heavy-duty tachogenerator from Baumer, specifically designed for use in potentially explosive environments. It is ATEX certified, ensuring safe operation in such conditions.
This generator features a solid shaft with a diameter of 11 mm and an EURO flange B10, making it adaptable for various installations. With a low response time and an open circuit voltage of 20…150 mV per rpm, it provides reliable performance in demanding applications.
Datasheet:
- Reversal Tolerance: ≤0.1%
- Linearity Tolerance: ≤0.15%
- Temperature Coefficient: ± 0.06%/K (open-circuit)
- Isolation Class: B
- Calibration Tolerance: ±5%
- Climatic Test: Humid heat, constant (IEC 60068-2-3, Ca)
- Performance: 12 W (speed ≥5000 rpm)
- Armature-Circuit Time-Constant: <150 µs
- Open-Circuit Voltage: 20…150 mV per rpm
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: CE, ATEX
