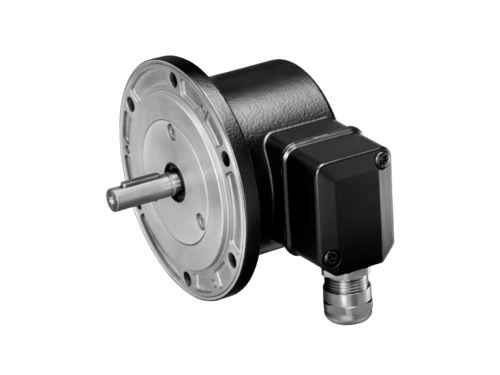

Baumer EEX OG 9 DN 1024 I, a robust incremental encoder designed for precision.
Featuring a solid shaft and an optical sensing method, it delivers 1024 pulses per revolution for enhanced accuracy.
The Baumer EEX OG 9 DN 1024 I is a high-precision incremental encoder specially designed for industrial applications. This encoder uses an optical measurement method and ensures reliability and accuracy even in harsh environments.
Its solid shaft with EURO flange B10 and an impressive operational speed of up to 12000 rpm make it suitable for a variety of applications. Additionally, its IP 55 protection rating guarantees operation in challenging conditions, providing peace of mind to users.
Datasheet:
- Supply voltage: 9…30 VDC
- No-load consumption: ≤100 mA
- Steps per revolution: 1024
- Phase shift: 90° ± 20°
- duty cycle: 40…60 %
- Reference signal: Zero pulse, 90° width
- Measurement method: Optical
- Output frequency: ≤120 kHz, ≤300 kHz (on request)
- Output signals: K1, K2, K0 + inverted
- Output stages: HTL-P (high power linear driver)
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: CE, UL approval / E217823
Technical data – mechanical design
- Size (flange): ø115 mm
- Shaft type: ø11 mm, solid shaft
- Permissible shaft load: ≤250 N axial, ≤350 N radial
- Flange: EURO flange B10
- Protection according to EN 60529: IP 55
- Operating speed: ≤12000 rpm (mechanical)
- Typical torque: 1 Ncm
- Rotor moment of inertia: 280 gcm
- Material: Housing: aluminum die-casting, Shaft: stainless steel
- Operating temperature: -30…+100 °C
- Vibration resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz
- Impact resistance: IEC 60068-2-27 Impact 100 g, 6 ms
- Corrosion protection: IEC 60068-2-52 Salinity for ambient conditions C4 according to ISO 12944-2
- Connection: Terminal box
- Weight: approx. 980 g
Advantages.
- High accuracy: Provides precise measurements in increments of 1024 revolutions.
- Reliability: Resistant to vibrations, shock and corrosion.
- Optical measurement method: Provides high reliability and accuracy.
- IP 55 protection: Reliable operation in harsh environments.
- Energy saving: Low power consumption ensures cost-effective operation.
