EEx OG 9 Incremental Encoders, designed for precision in hazardous environments.
Featuring an optical sensing method and robust aluminum housing, these encoders meet ATEX and IECEx standards for safety and reliability.

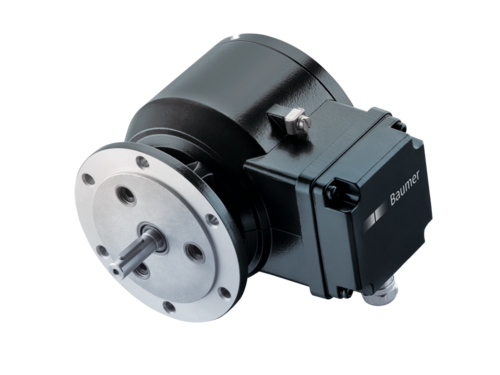

EExOG 9 Baumer HeavyDuty encoders incremental
The EEx OG 9 is a heavy-duty incremental encoder from Baumer, engineered for precise position measurement in explosive environments. With its optical sensing method and certification for ATEX and IECEx standards, it is ideally suited for industries such as oil and gas, chemical processing, and mining.
This encoder includes a robust design to withstand harsh conditions, ensuring long-lasting performance. Its various output stages, including HTL and TTL, provide flexibility for different applications. Additionally, the encoder’s compact construction allows for easy installation in space-constrained setups.
Datasheet:
- Voltage Supply: 9…30 VDC, 5 VDC ±5 %, 9…26 VDC
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 120…5000
- Phase Shift: 90° ±20°
- Duty Cycle: 40…60 %
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤120 kHz (pulses ≤1250), ≤250 kHz (pulses >1250)
- Output Signals: K1, K2, K0 + inverted
- Output Stages: HTL, TTL/RS422
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: CE, ATEX, IECEx
