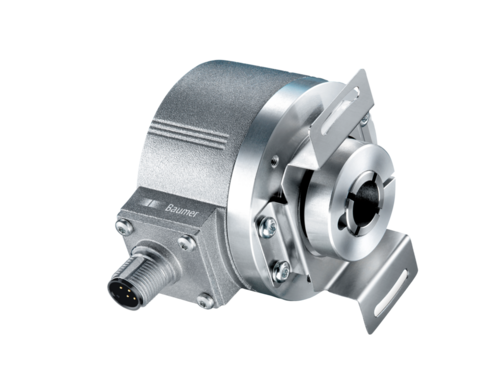

Baumer EIL580-B – Option 6301, an advanced incremental encoder designed for precision in industrial applications. Featuring a compact size of ø58 mm and optical sensing technology, it ensures high accuracy and reliability.
The Baumer EIL580-B – Option 6301 is a high-precision incremental encoder with optical measurement method designed for industrial applications where precise position measurement is required. This encoder is equipped with optoPulse, which provides high resolution and accuracy.
With a robust design, it offers excellent protection against dust and moisture with an IP 67 rating, making it suitable for harsh environments. Additionally, this encoder supports various output signals, ensuring compatibility with different systems.
Datasheet:
- Supply voltage: 5 VDC ±5%, 8…30 VDC, 4.75…30 VDC
- Reverse polarity protection: Yes
- Short circuit protection: Yes (HTL), Yes (TTL, max. 1 sec. and 1 signal)
- Consumption without load: ≤70 mA
- Steps per revolution: 100…5000
- Phase shift: 90 ° ±10°
- Duty cycle: 40…60 %
- Reference signal: Zero pulse, 90° ±10 % width
- Measurement method: Optical
- Output frequency: ≤300 kHz (TTL), ≤160 kHz (HTL)
- Output signals: A+, B+, R+, A-, B-, R-
- Output stages: TTL/RS422, HTL/push-pull
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: UL 508 / CSA 22.2
Technical data – mechanical design
- Size (flange): ø58 mm
- Shaft type: ø8…15 mm (blind hollow shaft), ø9.52 mm (blind hollow shaft), ø12.7 mm (blind hollow shaft)
- Protection EN 60529: IP 65 (without shaft seal), IP 67 (with shaft seal)
- Operating speed: ≤6000 rpm (+20 °C, IP 67), ≤8000 rpm (+20 °C, IP 65)
- Starting torque: ≤0.02 Nm (+20 °C, IP 65), ≤0.025 Nm (+20 °C, IP 67)
- Material: Body: aluminum casting; Flange: aluminum
- Operating temperature: -40…+85 °C
- Relative humidity: 90% without condensation
- Resistance: EN 60068-2-6, 30 g vibration, 10-2000 Hz; EN 60068-2-27, 250 g shock, 6 ms
- Connection: M12 flange connector, 8-pin; M23 flange connector, 12-pin; Cable
- Weight: approx. 300 g
Advantages:
- High accuracy: Precise measurement in steps per revolution of 100…5000.
- Vibration and shock resistance: High resistance to vibration and shock.
- Optical measurement method: Ensures high reliability and accuracy.
- IP 67 protection: Reliable operation in harsh environments.
- Programmable parameters: Allows you to customize operating modes, overall resolution, scaling, and rotational speed monitoring.
