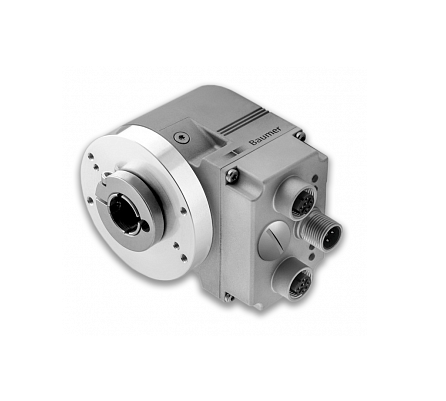

Blind Hollow Shaft Incremental Encoder, designed for precise motion control.
With its stator coupling, this encoder ensures reliable performance in various applications.
The EIL580-BT12 incremental encoder is a discrete shaft angle sensor that generates a normalized electrical pulse for every defined increment of the angle of rotation. With continuous rotation of the shaft, a sequence of pulses occurs, containing information about the relative angle of rotation and speed of rotation.
Technical Data
- ø63 mm;
- Bore ø12 mm,
- Clamping Ring on A-side;
- Supply Voltage: 8 to 30 Vdc;
- HTL/Push-Pull 6-Channels;
- 1024 ppr;
- IP 65;
- 2-Meters prewired PVC Shielded Cable, Radial Outlet
This encoder is ideal for applications requiring high precision and reliability. Its robust design ensures it can withstand challenging environments while providing accurate feedback for motion control systems. Enhance your automation solutions with the EIL580-BT12 encoder for optimal performance.
