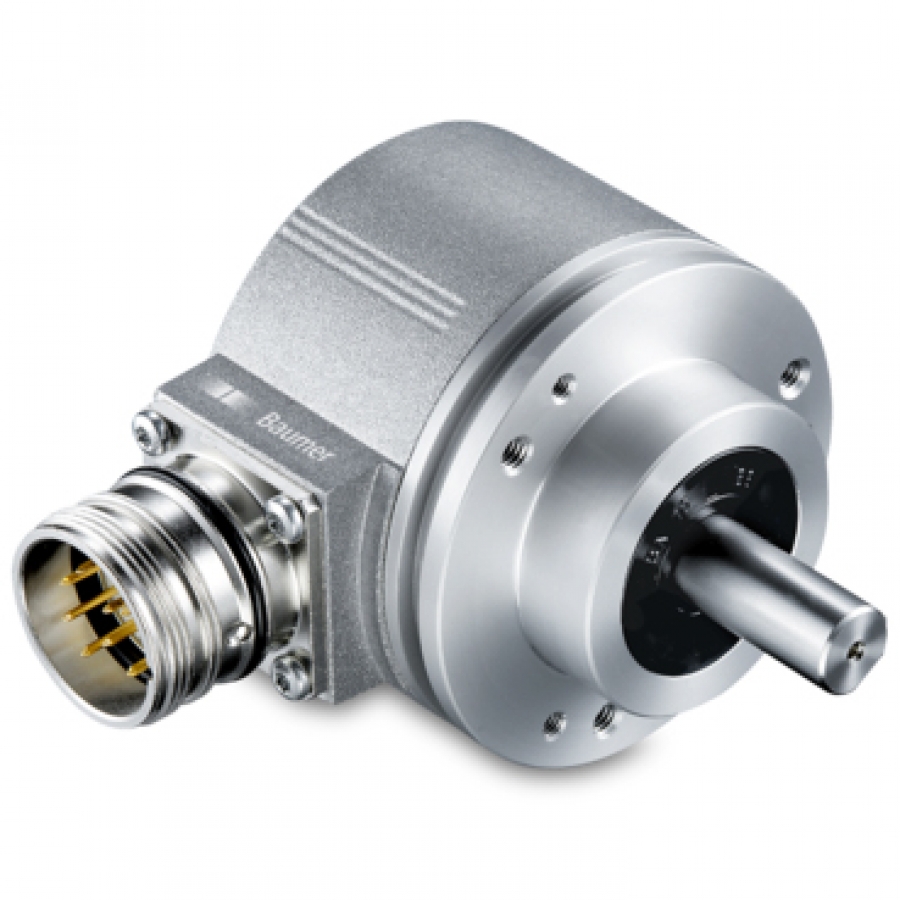

EIL580-S1B1.5FN.1024.A is a high-performance incremental encoder designed for precision applications. With 1024 pulses per revolution, it ensures accurate rotational measurement.
The EIL580 series incremental encoder is an optical speed sensor generating a digital code corresponding to the angle of rotation of the encoder shaft. The device allows you to determine the speed of rotation of the shaft and the angle of rotation relative to the previous position. Incremental encoders are used in cases where there is no need to save information about the absolute position of the shaft after a trip.
Features:
- Solid stainless steel shaft
- Cast aluminum housing
- Diameter: 58 mm
- Programmable Output Level (TTL or HTL)
- Precision optical sensing
- Axial, radial or tangential connection
- High shock and vibration resistance
Specification:
| Pulses Per Revolution | 1024 |
| Encoder Technology | Optical |
| Max Revolutions | 12000 rpm |
| Output Signal Type | HTL / Push-Pull |
| Shaft Type | Solid shaft |
| Shaft Diameter | 10 mm |
| Supply Voltage | 8 → 30 V dc |
| IP Rating | IP65 |
| Overall Width | 58 mm |
| Min operating temperature | – 40 °C |
| Max Operating temperature | + 85 °C |
This encoder is ideal for industrial applications requiring precise feedback and control. Its robust design ensures reliability in harsh environments, making it a vital component in automation systems.
