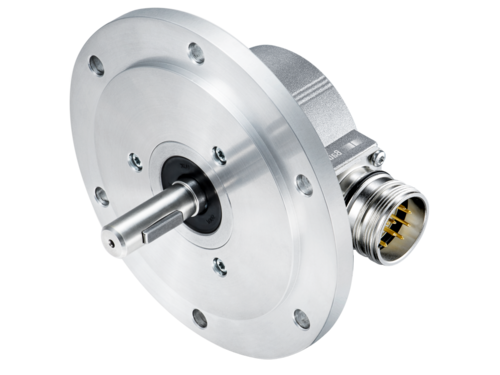

Baumer EIL580-S1B1 incremental encoder, featuring a robust design with a EURO flange B10. This encoder ensures precise optical sensing and exceptional reliability for your industrial applications.
The Baumer EIL580-S1B1 is a high-precision incremental encoder with optical measurement method designed for industrial applications. It is equipped with a solid shaft with Woodroffe ring and EURO B10 flange for high resistance to vibrations and shock.
This encoder offers versatility with multiple connection options and a maximum of 5000 pulses per revolution, making it suitable for various operational needs. With an IP 67 rating, it guarantees reliable performance in demanding environments. The encoder’s design incorporates advanced features such as reverse polarity and short circuit protection, ensuring enhanced reliability and safety in your operations.
Datasheet:
- Supply voltage: 5 VDC ±5%, 8…30 VDC, 4.75…30 VDC
- Reverse polarity protection: Yes
- Short circuit protection: Yes (HTL), Yes (TTL, max. 1 sec. and 1 signal)
- Consumption without load: ≤70 mA
- Steps per revolution: 100…5000
- Phase shift: 90 ° ±10°
- Duty cycle: 40…60 %
- Reference signal: Zero pulse, 90° ±10 % width
- Measurement method: Optical
- Output frequency: ≤300 kHz (TTL), ≤160 kHz (HTL)
- Output signals: A+, B+, R+, A-, B-, R-
- Output stages: TTL/RS422, HTL/push-pull
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: UL 508 / CSA 22.2
