Baumer EIL580-SC – optoPulse

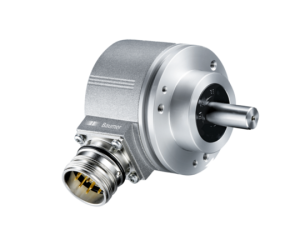

The EIL580-SC – optoPulse from Baumer is a high-precision incremental encoder that provides reliable and accurate measurement of angular displacements. It has a compact size (58 mm diameter) and uses an optical reading method that ensures high accuracy and signal stability.

This encoder features a programmable number of pulses per revolution, allowing for customization to meet specific application needs. The robust design includes high protection against dust and moisture with an IP 67 rating, making it suitable for challenging environments. Additionally, its flexible connection options (axial, radial, tangential) facilitate easy integration into various systems.

Datasheet:

• Power supply voltage: 4.75…30 VDC
• Protection against reverse polarity: Yes
• Short circuit protection: Yes
• Consumption without load: ≤70 mA
• Initialization time: ≤30 ms after power on
• Output signal frequency: ≤300 kHz (TTL), ≤160 kHz (HTL)
• Output signals: A+, B+, R+, A-, B-, R-
• Body material: Cast aluminum
• Flange material: Aluminum
• Shaft material: Stainless steel
• Operating temperature: -40…+100 °C
• Relative humidity: 90 % without condensation
• Vibration resistance: 30 g, 10-2000 Hz
• Resistance to shocks: 300 g, 6 ms

Advantages:

• High accuracy: The optical reading method ensures high measurement accuracy.
• Programmability: Possibility to program the number of pulses per revolution and the output signal level.
• Reliability: High level of protection against dust and moisture (IP 67), as well as resistance to shock and vibration.
• Flexible installation: Various connection options (axial, radial, tangential) allow for easy integration of the encoder into various systems.
