Out of stock
Incremental encoder, designed for precision and durability in various applications.
Featuring a quadrature signal output and robust electrical protection, this encoder is ideal for demanding environments.

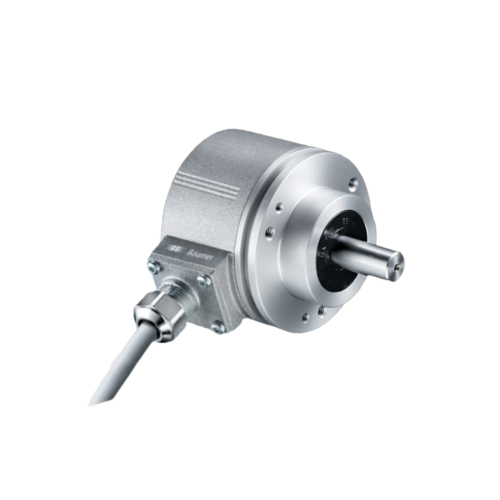

Baumer eil580-sc10 has solid shaft with clamping flange. Its size is 58 mm. It is characterized by precise optical sensing (interpolated), output signal level programmable (TTL or HTL), clamping flange, connection axial, radial or tangential, pulses per revolution 1…65536, programmable, high protection up to IP 67 and high resistance to shock and vibrations.
This incremental encoder is tailored for applications that require high accuracy and reliability. With an operating temperature range from -40 °C to +85 °C, it ensures consistent performance in harsh conditions. The encoder also boasts a supply voltage of 8 to 30 Vdc and is backed by UL 508 / CSA 22.2 approvals, making it a safe choice for industrial use.
Datasheet:
- Shaft Type :Solid Shaft Driven
- Shaft (S)/Bore (B) Dia. :S: 10 mm
- Mounting Type :Clamping Flange
- Encoder Type :Incremental
- Sensing Method :Optical
- Output Signal :HTL
- PPR :1024 ppr
- Supply Voltage :8 to 30 Vdc
- Connection Type :2-Mtrs PVC Shielded Cable, Radial Outlet
- Operating Temperature :From -40 °C to +85 °C
- Protection :IP 65
- Approval :UL 508 / CSA 22.2
- Weight :0.3 KG
The International Baumer Group specializes in the development and production encoders and other sensor technology with various accessories. Baumer Group is a global partner for anyone who uses automatic control systems for defect detection and monitoring. Baumer is a market leader in sensors that are used in many industries.
