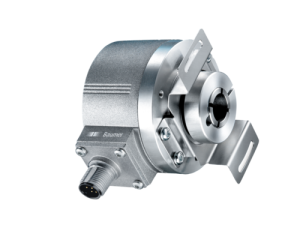

Baumer EIL580-T – through hollow shaft – Option 6301

The EIL580-T – Option 6301 from Baumer is an incremental encoder with optical tracking that supports the CANopen® standard. It offers high accuracy and reliability in demanding industrial environments. This encoder is ideal for applications where precise speed measurement is critical. With its robust design and high protection rating of IP 67, it is well-suited for both wet and dusty conditions.

Datasheet

Electrical specifications:

• Supply voltage: 5 VDC ±5%, 8…30 VDC, 4.75…30 VDC
• Consumption without load: ≤70 mA
• Initialization time: 170 ms after power on
• Interface: CANopen®.
• Function: Singleturn
• Profile compliance: CANopen® CiA DSP 301 4.01, DSP 305 V1.0, DSP 406 V3.0
• Number of steps per revolution: 100…5000
• Absolute accuracy: ±0.025°
• Tracking method: Optical
• Code: Binary
• Code sequence: CW by default, programmable
• Interference resistance: EN 61000-6-2
• Radiated interference: EN 61000-6-3
• Programmable parameters:
• Operating modes
• General resolution
• Scaling
• Rotation speed monitoring
• Diagnostic functions
• Position or parameter errors
• Multitouring capability
• Approval: UL 508 / CSA 22.2

Mechanical design:

• Size (flange): ø58 mm
• Shaft type: ø8…15 mm (hollow blind shaft)
• Protection EN 60529: IP 65 (without shaft gate), IP 67 (with shaft gate)
• Operating speed: ≤30,000 rpm (IP 67), ≤60,000 rpm (IP 65)
• Operating torque: ≤0.025 Nm (IP 65), ≤0.03 Nm (IP 67)
• Material:
• Body: aluminum, cast
• Flange: aluminum
• Operating temperature: -40…+85 °C
• Relative humidity: 90 % without condensation
• Resistance:
• Vibration: EN 60068-2-6, 30 g, 10-2000 Hz
• Shock: EN 60068-2-27, 250 g, 6 ms
• Connection: Connector M12, 8-pin or M23, 12-pin
• Weight: approx. 300 g

Advantages:

• High accuracy: Provides precise speed measurement thanks to the optical tracking method.
• Resistant to conditions: Operates in a wide range of temperatures and humidity, allowing it to be used in a variety of environments.
• Rugged design: Highly resistant to vibrations, shocks, and industrial environments.
• Energy efficiency: Minimal power consumption reduces energy costs, which is important for long-term projects.
• Protection: High level of protection up to IP 67, making it suitable for use in wet and dust environments.
